Seco 00094815 Milling Insert SONX120508TR-ME08 F40M Carbide

Product Description

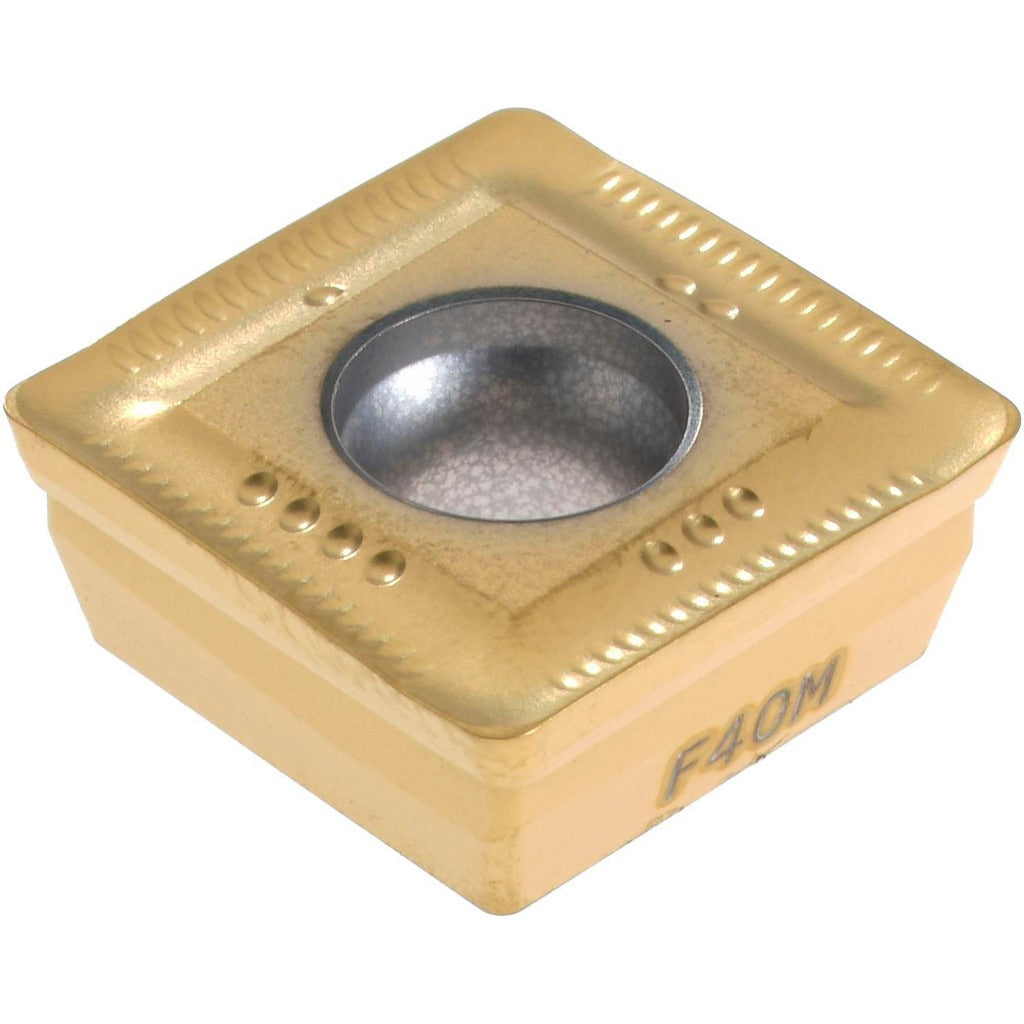

The SECO 00094815 is a solid carbide milling insert carrying the ANSI/ISO designation SONX120508TR-ME08 and manufacturer grade F40M. It features a square shape with a 90-degree included angle, four cutting edges, and a right-hand orientation. The insert is PVD-coated with TiAlN and TiN layers for heat and wear resistance during demanding milling operations. At 0.5 inches inscribed circle diameter, 0.2035 inches thick, and a corner radius of 0.0315 inches, it is sized for the SONX-12 series. The ME08 chip breaker geometry and T-Land cutting edge style support stable, positive-rake cutting across a range of workpiece materials. Licensed machinists and tooling technicians are the typical end users.

This insert is designed for face milling, shoulder milling, and general metal removal applications in both production and job-shop environments. Primary workpiece materials include steel, cast iron, superalloys, and titanium. Secondary material compatibility extends to cast iron and non-ferrous metals. The maximum depth of cut reaches 0.4331 inches, making it suitable for moderate to aggressive passes in horizontal and vertical machining centers. The insert is compatible with the R220.99-12 cutter series.

Key Features

• Solid carbide fine-grain substrate with PVD TiAlN and TiN dual coating for extended tool life
• Square shape with 90-degree included angle and four usable cutting edges
• ME08 chip breaker with T-Land edge style for positive-rake, controlled chip formation
• Corner radius of 0.0315 inches (1/32 inch) for reduced notching and edge stability
• Maximum depth of cut 0.4331 inches with a 0.5000-inch effective cutting edge length
• Right-hand orientation; single-sided insert held by screw mounting

Compatibility

Designed for use in SECO R220.99-12 series milling cutter bodies. ANSI and ISO code SONX120508TR-ME08 applies. Minimum order quantity is 10 pieces; package quantity is 1.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician with the spindle fully stopped and machine in a locked-out, tagged-out state. Seat the insert fully against the pocket locating surfaces before tightening the clamping screw; do not over-torque the screw. Inspect the insert pocket for chips or debris before seating each new insert. Rotate to a fresh cutting edge before replacing the insert entirely to maximize material value.
