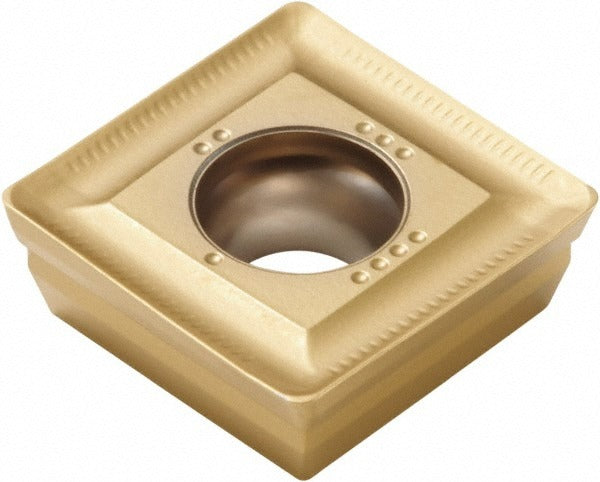

Seco 00094732 Milling Insert SONX150508TR-ME10 F40M Carbide

Product Description

The SECO 00094732 is a solid carbide milling insert carrying the ANSI and ISO designation SONX150508TR-ME10 in manufacturer grade F40M. The insert is square in shape with a 90-degree included angle, four cutting edges, and a right-hand cutting orientation. It features a TiAlN and TiN dual-layer coating applied via PVD process over a fine-grain carbide substrate, delivering hardness and thermal resistance suited to demanding milling operations. The ME10 chip breaker geometry provides a positive rake angle of 19 degrees with a T-Land cutting edge style, promoting controlled chip flow and reduced cutting forces across a wide range of workpiece materials.

This insert is intended for use in face milling, shoulder milling, and general milling applications on steel, stainless steel, cast iron, non-ferrous metals, superalloys, and titanium. It is compatible with the R220.99-15 cutter series and is designed for use in SONX-15 series tooling. Typical installation environments include production machining centers and CNC milling machines in job shop, aerospace, and general metalworking settings. The part is sold individually with a minimum order quantity of 10 units.

Key Features

• Solid carbide fine-grain substrate with TiAlN and TiN PVD coating for high wear resistance
• Square SONX insert shape with 90-degree included angle and four usable cutting edges
• ME10 chip breaker with positive rake geometry for reduced cutting forces
• Maximum depth of cut of 0.5512 inches supports aggressive material removal rates
• T-Land cutting edge style improves edge stability on hard and abrasive workpiece materials
• Compatible with R220.99-15 cutter series for direct OEM-style replacement or initial tooling

Compatibility

Designed for use with SECO R220.99-15 series milling cutters. Insert conforms to ANSI and ISO designation SONX150508TR-ME10 and fits SONX-15 series tooling bodies using a screw-clamp insert holding method.

Installation Notes

Installation is performed by qualified machinists or tooling technicians. Disengage machine power and lock out the spindle before seating or removing inserts. Use the correct torx or hex key as specified by the cutter body manufacturer when tightening the clamping screw, and ensure the insert pocket is clean and free of chips before seating. Inspect the pocket and clamping screw for wear each time inserts are indexed or replaced.
