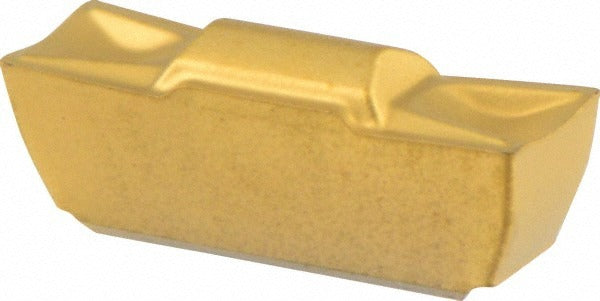

Seco 00091035 Mdt Turning Insert CP500 Solid Carbide

Product Description

The SECO 00091035 is a solid carbide multi-directional turning insert designed for precision grooving and turning operations on CNC lathes and turning centers. Part of the MDT series, this double-ended, neutral-hand insert carries a CP500 manufacturer grade and features a PVD-applied TiAlN/TiN coating for extended tool life across a wide range of workpiece materials. The insert measures 0.157 inches in cutting width and 0.157 inches in cutting height, with a 0.008-inch corner radius and a full radius geometry. Micrograin carbide construction supports consistent edge integrity at elevated cutting speeds. Licensed machinists and tool-room technicians are the primary installers.

This insert is suited for multi-directional turning, grooving, and profiling applications in both production and job-shop environments. The LCMF insert style and FT chipbreaker geometry make it appropriate for light to medium stock removal passes. Primary workpiece material codes H, K, M, N, P, and S indicate suitability across hardened steels, cast iron, stainless, non-ferrous alloys, carbon steels, and heat-resistant superalloys. It is sold individually per package with a minimum order quantity of 10 units.

Key Features

• CP500 micrograin solid carbide substrate with PVD TiAlN/TiN coating for wear resistance
• Full radius insert geometry suitable for profiling and multi-directional cutting paths
• Double-ended design extends usable insert life per unit
• FT chipbreaker optimized for controlled chip formation across multiple material groups
• Neutral hand orientation fits both left- and right-hand toolholders in the MDT series
• Relief angle of 7 degrees supports positive cutting action and reduced flank wear

Compatibility

Designed for use with MDT series multi-directional turning toolholders accepting LCMF-style inserts with insert size code 130402 and an insert length of 0.486 inches (12.40 mm).

Installation Notes

Insert seating and clamping should be performed with the machine fully powered down and the spindle locked. Use the toolholder manufacturer's recommended torque driver and seating procedure to ensure full contact at the insert pocket. Inspect the pocket for chips or debris before seating a new insert. Trained machinists familiar with turning insert handling and toolholder specifications should perform the changeover.
