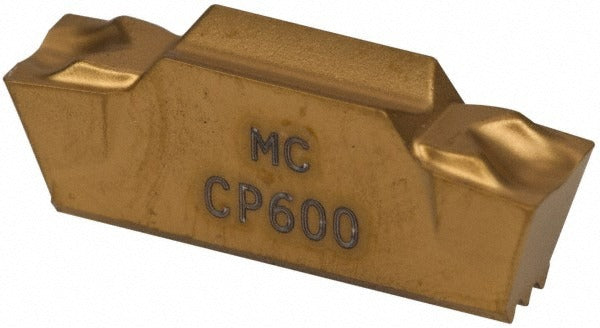

Seco 00088705 Turning Insert CP600 Solid Carbide LCMF160402

Product Description

The SECO 00088705 is a solid carbide multi-directional turning insert in the MDT series, designed for external turning, grooving, and parting operations on CNC lathes and turning centers. It carries the CP600 manufacturer grade with a PVD-applied TiAlN/TiN coating, which provides wear resistance and thermal stability across a range of workpiece materials. The insert measures 0.630 inches in length with a maximum cutting width of 0.157 inches and a cutting height of 0.177 inches. A 0.008-inch corner radius and MC chipbreaker geometry support controlled chip flow during moderate to high-feed passes. Neutral hand orientation makes it compatible with both left- and right-hand toolholders.

This insert is suited for machining stainless steel, non-ferrous metals, carbon and alloy steels, and high-temperature alloys, corresponding to ISO material codes M, N, P, and S. The double-end configuration provides two usable cutting edges per insert, extending tool life per unit and reducing per-edge cost in production turning environments. It is installed by machinists and CNC tooling technicians in job shops and production facilities running medium to light finishing cuts. The LCMF160402-0400-MC style designation aligns it with compatible MDT series toolholders that accept LCMF-style seating.

Key Features

• CP600 grade with PVD TiAlN/TiN coating for wear resistance across multiple material groups
• Double-end insert design yields two cutting edges per piece
• MC chipbreaker geometry promotes controlled chip evacuation
• Neutral hand orientation fits both left- and right-hand toolholder setups
• 0.008-inch corner radius suited for moderate finishing and medium roughing passes
• Relief angle of 7 degrees supports positive cutting action and reduced cutting forces

Compatibility

Designed for use with MDT series toolholders accepting LCMF-style inserts; compatible with workpiece materials in ISO categories M, N, P, and S including stainless steel, non-ferrous alloys, carbon steel, and high-temperature alloys. Verify toolholder seating pocket specifications against the LCMF160402-0400-MC style designation before ordering.

Installation Notes

Insert seating and clamping should be performed by a qualified machinist or CNC tooling technician with the machine powered down and spindle locked. Torque the clamping screw to the toolholder manufacturer's specification using the correct hex key — do not over-torque, as this can damage the carbide insert or seating pocket. Inspect the seating pocket for chips or debris before installing the insert. Confirm coolant flow direction and pressure are appropriate for the material grade and cutting parameters before resuming operation.
