Seco 00087774 Lh Cfil Indexable Turning Toolholder

Product Description

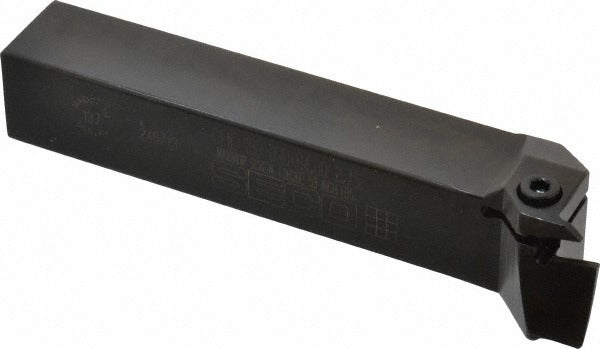

The SECO 00087774 is a left-hand CFIL-style indexable turning toolholder designed for grooving and cut-off operations on CNC lathes and turning centers. Built on the Multi-Directional Turning (MDT) series platform, it features a 1 inch x 1 inch square shank and an overall length of 6 inches. The holder uses a mechanical clamp to secure LC..1603.. family inserts, providing rigid, repeatable insert location for consistent groove width and depth. The toolholder body is constructed from steel and is rated for universal workpiece materials, making it suitable for a broad range of turning applications. Machining professionals and CNC setup technicians are the primary installers of this tool.

This toolholder is suited for grooving and cut-off work on a wide range of workpiece materials, including steels, stainless steels, cast iron, non-ferrous alloys, heat-resistant superalloys, and non-metallic materials, corresponding to ISO material groups H, K, M, N, P, and S. The CFIL style and 90-degree lead angle position the insert perpendicular to the workpiece axis, which is standard for external grooving passes. The multi-use designation means a single toolholder body can accommodate several compatible insert geometries within the LC..1603.. family, reducing tooling inventory requirements.

Key Features

• Left-hand cutting direction with 90-degree lead angle for external grooving and cut-off
• Clamp-style insert holding for secure, repeatable seating of LC..1603.. inserts
• 1 inch x 1 inch shank cross-section with 6 inch overall length
• Maximum depth of cut of 0.354 inches for groove depth control
• Compatible with multiple insert geometries: LC..1603.., LCGN, LCMF, and LCMR
• Steel toolholder body rated for universal workpiece material groups (H, K, M, N, P, S)
• Multi-use designation reduces the number of dedicated holders required on the turret

Compatibility

Designed to accept LC..1603.. series inserts, including compatible geometries LCGN, LCMF, and LCMR, with a 3.00 mm (0.125 inch) insert width and compatible insert size code LC1603. Verify machine turret bore and shank clearance against the 1 inch x 1 inch shank cross-section before mounting.

Installation Notes

This toolholder is installed by machinists or CNC tooling technicians. The machine spindle must be fully stopped and all motion axes locked out before mounting or removing the toolholder from the turret. Use calibrated torque tools when tightening the insert clamp screw to the insert manufacturer's specification. Confirm insert seating and tool stick-out measurement before running the first part.
