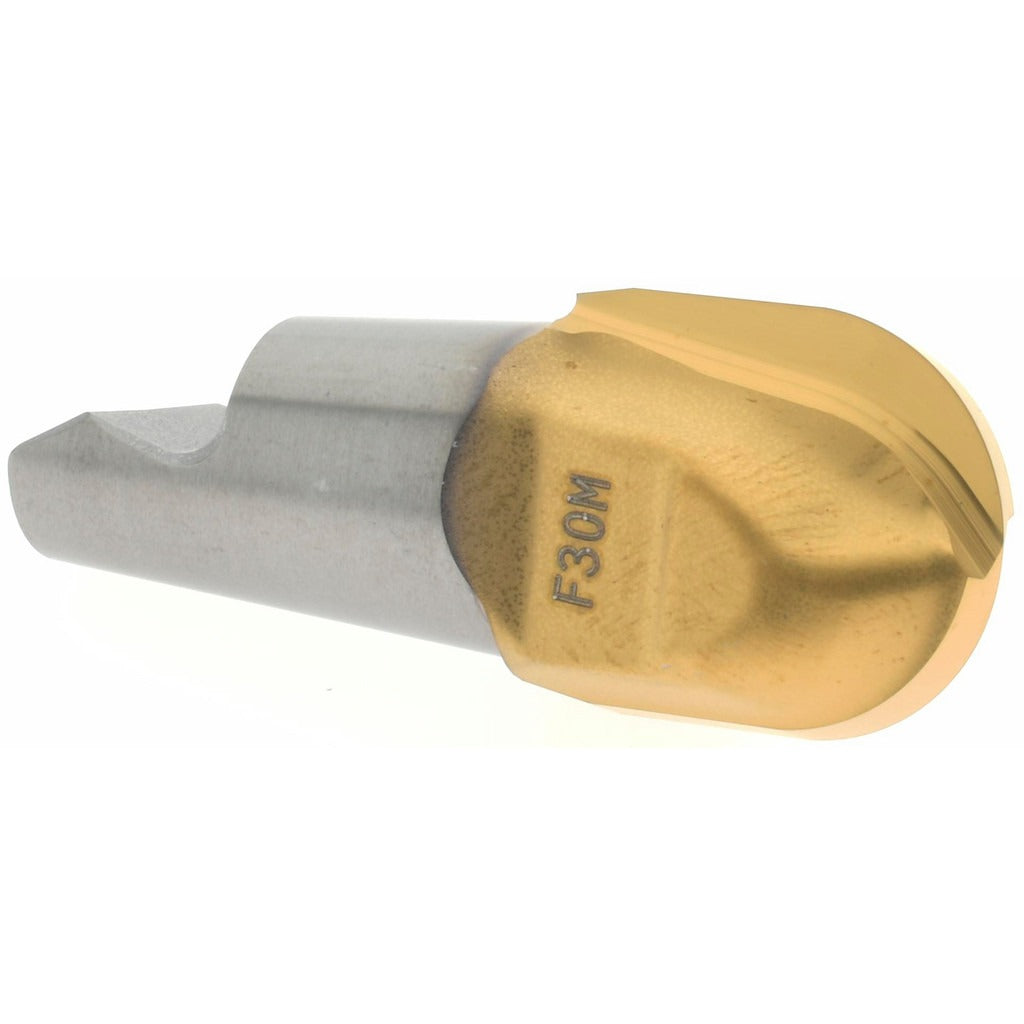

Seco 00086949 Milling Tip 0.500 in Carbide 2 Flute MM12

Product Description

The SECO 00086949 is an end replaceable milling tip designed for use with Minimaster MM12-series modular milling systems. This carbide tip features a 0.500-inch cutting width, a 90-degree lead angle, and a two-flute right-hand configuration. The F30M manufacturer grade carbide substrate is PVD-coated with TiAlN and TiN, providing wear resistance across a range of workpiece materials. The chipbreaker designation M05 suits medium-duty cutting applications. The tip has a functional length of 0.627 inches and a maximum depth of cut of 0.480 inches, making it well suited for profiling operations in production environments. Installation and tool changes are handled by machinists and CNC tooling technicians.

This milling tip is rated for use on steel, stainless steel, non-ferrous metals, and hard materials, corresponding to ISO material codes P, M, N, and H. Recommended material grades include P20, P30, M10, M20, and H10. The 90-degree included angle and 0.250-inch corner radius support profile milling operations where controlled edge geometry and repeatable insert seating are required. Typical applications include light-to-medium profiling and contouring passes on CNC machining centers where the MM12 Minimaster tooling system is in use.

Key Features

• Carbide substrate with PVD-applied TiAlN and TiN coating for extended tool life
• 0.500-inch cutting width with 0.480-inch maximum depth of cut
• Two-flute right-hand cut geometry for efficient chip evacuation
• F30M grade with M05 chipbreaker suited for medium-duty steel and stainless applications
• 0.250-inch corner radius and 90-degree lead angle for profile milling
• ANSI standard; meets UNSPSC code 23291601

Compatibility

Designed for use with the MM12 Minimaster modular milling system. Insert size designation is 0.500-B90P. Compatible workpiece material codes are P, M, N, and H per ISO classification.

Installation Notes

End replaceable milling tips of this type are installed and changed by qualified machinists or CNC tooling technicians. Ensure the spindle is fully stopped and the machine is in a safe, locked-out state before performing any insert change. Use the appropriate torque wrench and seating tool specified for the MM12 holder to ensure proper tip engagement and runout. Do not exceed the rated depth of cut for the insert grade and workpiece material combination.
