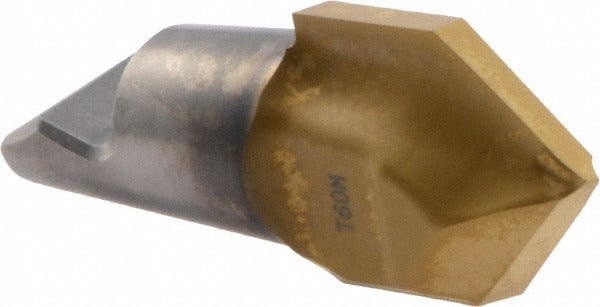

Seco 00084297 Replaceable Milling Tip MM16 Carbide

Product Description

The SECO 00084297 is a replaceable carbide milling tip designed for the Minimaster MM16 modular end mill system. This chamfer-style tip features a 90-degree included angle with a 45-degree lead angle and a 45-degree chamfer angle, making it suited for chamfering, center drilling, and spotting operations. The tip is manufactured from solid carbide with a PVD-applied TiAlN coating for heat and wear resistance. It carries a 0.750-inch cutting width, a maximum depth of cut of 0.378 inches (9.6 mm), and a functional length of 0.872 inches (22.15 mm). The T60M manufacturer grade and M06 chipbreaker geometry are optimized for controlled chip evacuation across a wide range of workpiece materials. Installation requires a compatible MM16 Minimaster holder.

This tip is intended for use in machining centers and milling machines where modular tooling systems are preferred for quick tip changes and consistent repeatability. It is rated for use on steel, stainless steel, cast iron, non-ferrous metals, superalloys, titanium, and hard materials, covering ISO material groups P, M, K, N, S, and H. Right-hand cut orientation makes it compatible with standard spindle rotation. It is appropriate for production environments in aerospace, general metalworking, and precision machining shops where a single tool platform handles multiple operations.

Key Features

• MM16 Minimaster replaceable tip system for fast, repeatable tip changes without removing the holder
• Solid carbide construction with PVD TiAlN coating for extended tool life in abrasive and high-temperature cuts
• 90-degree included angle with 45-degree chamfer and lead angles for chamfering and spotting
• 2-flute design with M06 chipbreaker for efficient chip control across diverse materials
• Rated for steel, stainless steel, cast iron, non-ferrous metals, superalloys, titanium, and hard materials
• Right-hand cut; coolant-through not required, compatible with flood or mist coolant delivery at the holder

Compatibility

Designed for use with MM16-series Minimaster modular milling holders. The insert size designation is 0.750-C90 and the full milling tip description is MM16-0.750-C90-M06. Verify holder series and interface before ordering.

Installation Notes

Replaceable milling tips should be installed by a qualified machinist or tooling technician following the holder manufacturer torque and seating procedures. Ensure the spindle is fully stopped and the machine is in a safe, locked-out state before tip removal or installation. Inspect the holder interface for chips, debris, or wear before seating the new tip. Do not force the tip into the holder; proper seating is achieved by hand engagement followed by the specified wrench tightening per the holder documentation.
