Seco 00083407 Square Milling Insert Solid Carbide F40M

Product Description

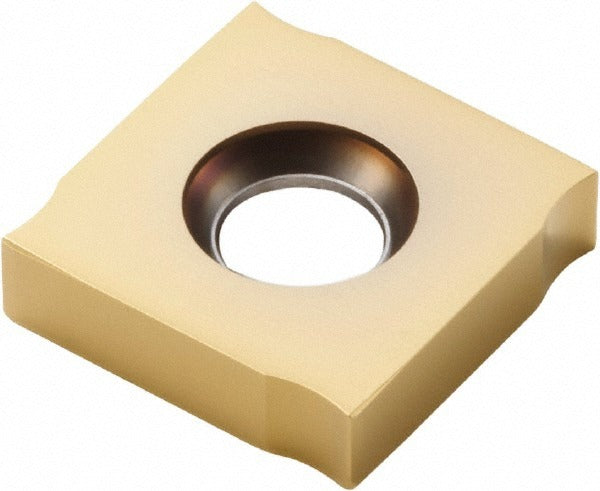

The SECO 00083407 is a solid carbide milling insert in the 335.19-11 series, designed for indexable milling cutters used in metal removal applications across industrial machining environments. The insert carries the ANSI/ISO designation 335.19-1103-M08 and is manufactured from fine-grain solid carbide with a PVD-applied TiAlN and TiN dual coating. The square profile features four cutting edges with a neutral hand orientation, a negative rake angle of 15 degrees, and a honed cutting edge style. The M08 chip breaker geometry is engineered to manage chip formation across a range of workpiece materials. This insert is handled and installed by machinists and toolroom technicians in CNC milling operations.

The 00083407 is intended for milling steel, stainless steel, cast iron, non-ferrous metals, superalloys, and titanium. It is rated primarily for steel (P), cast iron (K), and superalloys and titanium (S) classifications, with secondary suitability for cast iron (K) and non-ferrous metals (N). Typical applications include face milling, shoulder milling, and general metal removal in both production and job-shop environments where a versatile, multi-material insert is required. The insert is secured in the cutter body by a screw-holding method and is compatible with 335.19-series milling cutter bodies.

Key Features

• Fine-grain solid carbide substrate with PVD TiAlN and TiN dual coating for extended wear resistance
• Four cutting edges per insert, single-sided, with neutral hand orientation
• M08 chip breaker geometry supports chip control across steel, cast iron, and superalloy workpieces
• Honed cutting edge style with 15-degree rake angle and 90-degree included angle
• Screw-held mounting method for positive seating in compatible 335.19-series cutter bodies
• Meets ISO standards; ANSI/ISO code 335.19-1103-M08

Compatibility

Designed for use with 335.19-series indexable milling cutter bodies. Cutter series compatibility is confirmed for the 335.19 platform. Verify cutter pocket geometry and insert seat dimensions against the 335.19-1103-M08 ANSI/ISO designation before installation.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Power down and lock out the machine spindle before indexing or replacing inserts. Use the appropriate torx or hex key to secure the clamping screw to the cutter body per the toolholder manufacturer specifications. Inspect the insert seat and clamping screw for wear or damage each time the insert is indexed.
