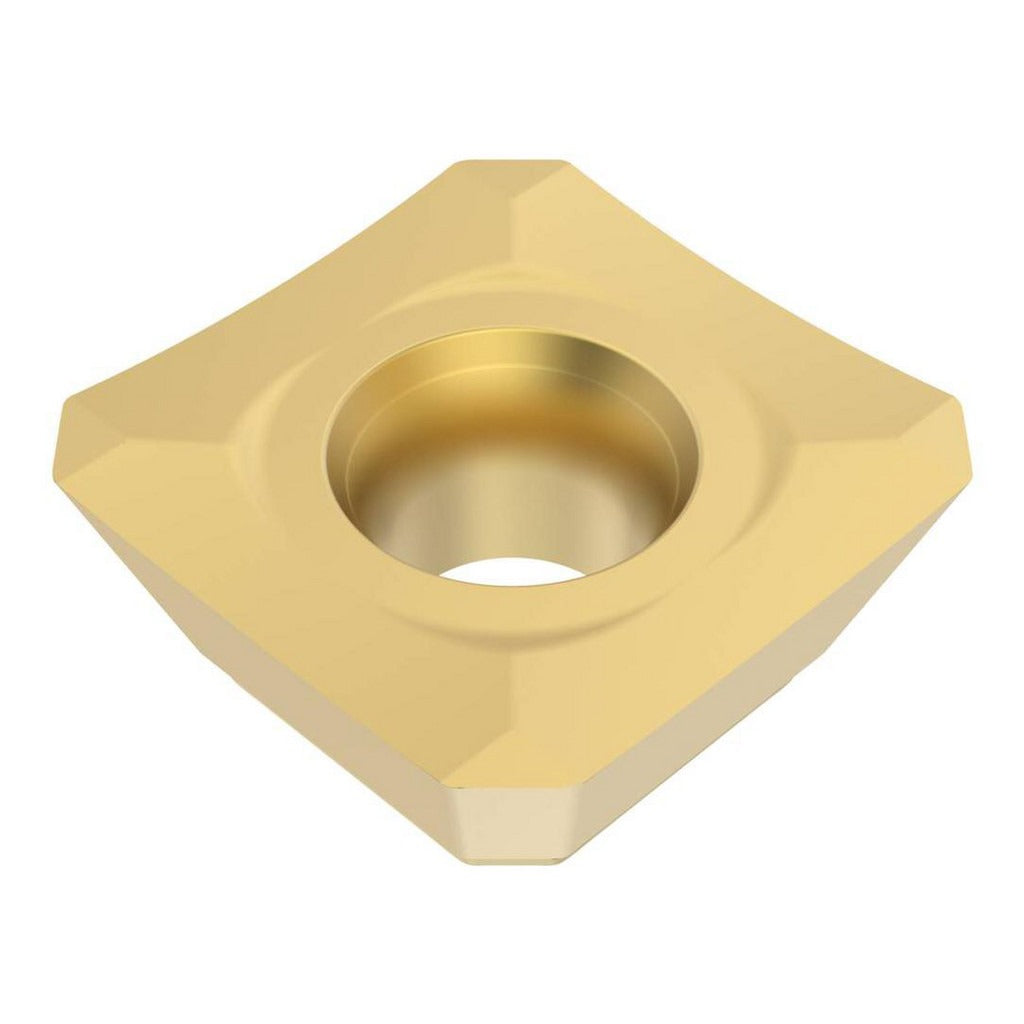

Seco 00081503 Milling Insert SEEX09T3AFN-M05 F40M Carbide

Product Description

The SECO 00081503 is a solid carbide milling insert carrying the ANSI/ISO designation SEEX09T3AFN-M05 and manufacturer grade F40M. This single-sided, square-shaped insert measures 3/8 inch in inscribed circle diameter and 5/32 inch thick, with a neutral rake and neutral hand orientation. It features a PVD-applied TiAlN and TiN dual coating over a fine-grain carbide substrate. Four cutting edges are available per insert. The M05 chip breaker geometry and 20-degree relief angle are engineered to control chip formation and reduce cutting forces in demanding milling operations. Installation and specification of this insert require familiarity with indexable tooling systems and machining parameters.

This insert is suited for milling steel, stainless steel, cast iron, non-ferrous metals, superalloys, and titanium in both roughing and semi-finishing applications. Primary workpiece material codes are P, K, and S, with secondary applicability to K and N material classes per ISO designations. It is used in horizontal and vertical milling machines by machinists and tooling specialists in production, job shop, and maintenance machining environments. Minimum order quantity is 10 inserts; each package contains one insert.

Key Features

• Solid carbide fine-grain substrate for wear resistance in hard and abrasive workpiece materials
• PVD-applied TiAlN and TiN dual coating for thermal and oxidation resistance
• Four usable cutting edges per insert for extended tool life per unit cost
• M05 chip breaker geometry engineered for steel and stainless steel milling
• 20-degree relief angle with honed cutting edge style for edge stability and reduced built-up edge
• Neutral rake and neutral hand for broad cutter compatibility

Compatibility

Compatible with SECO cutter series R217.53-09 and R220.53-09. Insert is held by screw method. ANSI and ISO code: SEEX09T3AFN-M05, insert size code 09T3, series SEEX-09.

Installation Notes

Installation is performed by qualified machinists or tooling technicians. Power down and lock out the machine spindle before indexing or replacing inserts. Use the correct torque screwdriver specified by the cutter body manufacturer when seating the clamping screw — do not overtighten or use an impact driver. Inspect the cutter body pocket and screw threads for chips or damage before seating a new insert.
