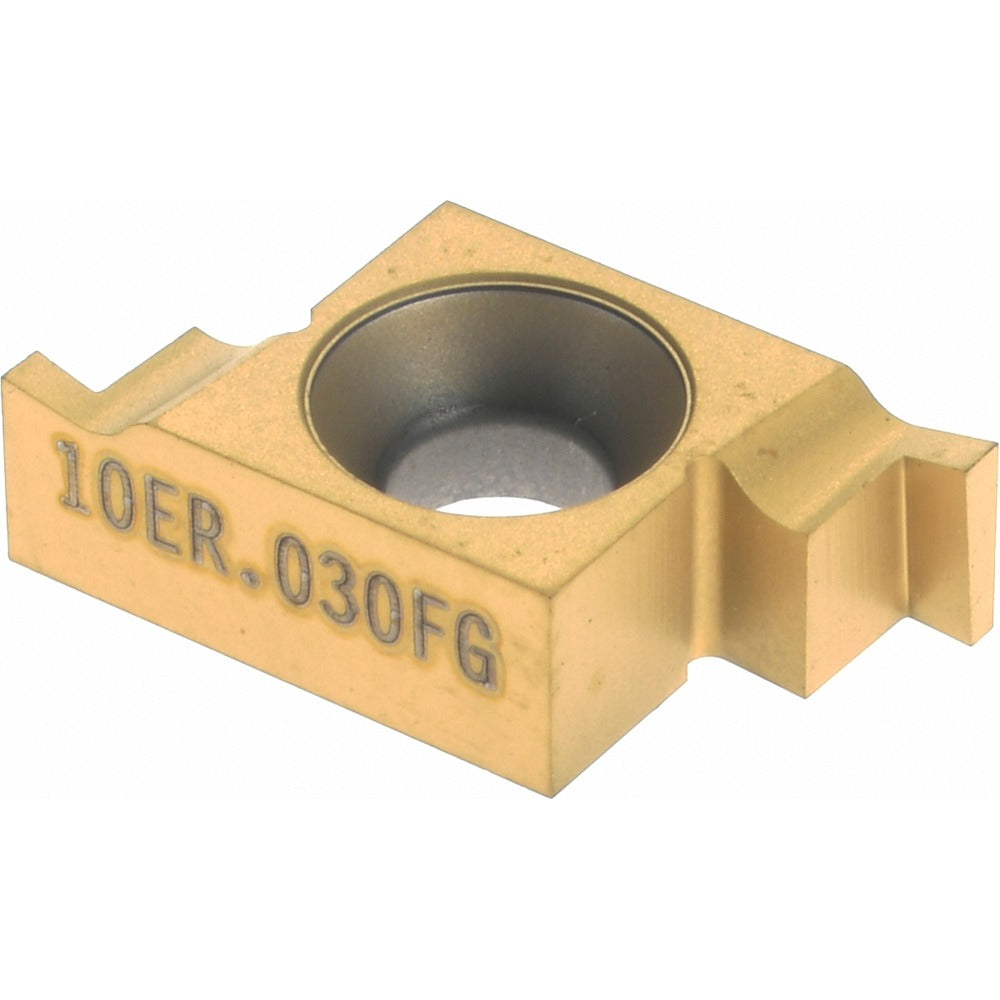

Seco 00077899 Grooving Insert 0.03 in Solid Carbide CP500

Product Description

The SECO 00077899 is a solid carbide grooving insert designed for threading and grooving operations on CNC lathes and turning centers. It carries a CP500 manufacturer grade with a PVD-applied TiAlN and TiN dual coating for wear resistance across a wide range of workpiece materials. The insert has a 0.03 inch cutting width, a maximum depth of cut of 0.03 inches, and an overall length of 0.3543 inches. It belongs to the Snap Tap series and uses a clamp-style holding method. The FG chip breaker geometry supports controlled chip formation during shallow grooving passes. Machinists and CNC operators in production and job shop environments install this insert.

This insert is suited for grooving and threading on external diameters in both light production and general-purpose turning applications. It is rated for universal primary workpiece material compatibility, covering material grade codes H, K, M, N, O, P, and S, which includes steel, stainless steel, cast iron, non-ferrous alloys, and high-temperature alloys. The right-hand orientation and 10ER insert style make it compatible with Snap Tap series toolholders designed for that insert seat. It is manufactured to ISO standards and is typically used on CNC turning equipment where consistent groove width and depth are required.

Key Features

• Solid carbide micrograin substrate for edge stability and wear resistance
• PVD-applied TiAlN and TiN dual coating for extended tool life across multiple material groups
• 0.03 inch cutting width with a maximum depth of cut of 0.03 inches
• FG chip breaker geometry for controlled chip evacuation in shallow grooves
• Right-hand orientation, 10ER insert style, clamp holding method
• Universal material grade compatibility: H, K, M, N, O, P, and S codes
• Manufactured to ISO standards

Compatibility

Designed for use with Snap Tap series toolholders accepting a 10ER insert style with a 10 insert seat size and a 0.25 inch inscribed circle. Verify toolholder specifications before ordering.

Installation Notes

This insert is installed and replaced by machinists or CNC tooling technicians. Power down and lock out the machine before changing inserts. Use the appropriate clamp torque driver recommended by the toolholder manufacturer and handle carbide inserts carefully to avoid chipping the cutting edge. Confirm insert orientation and seat cleanliness before clamping.
