Seco 00077861 Threading Insert 40 Tpi Un CP500 Carbide

Product Description

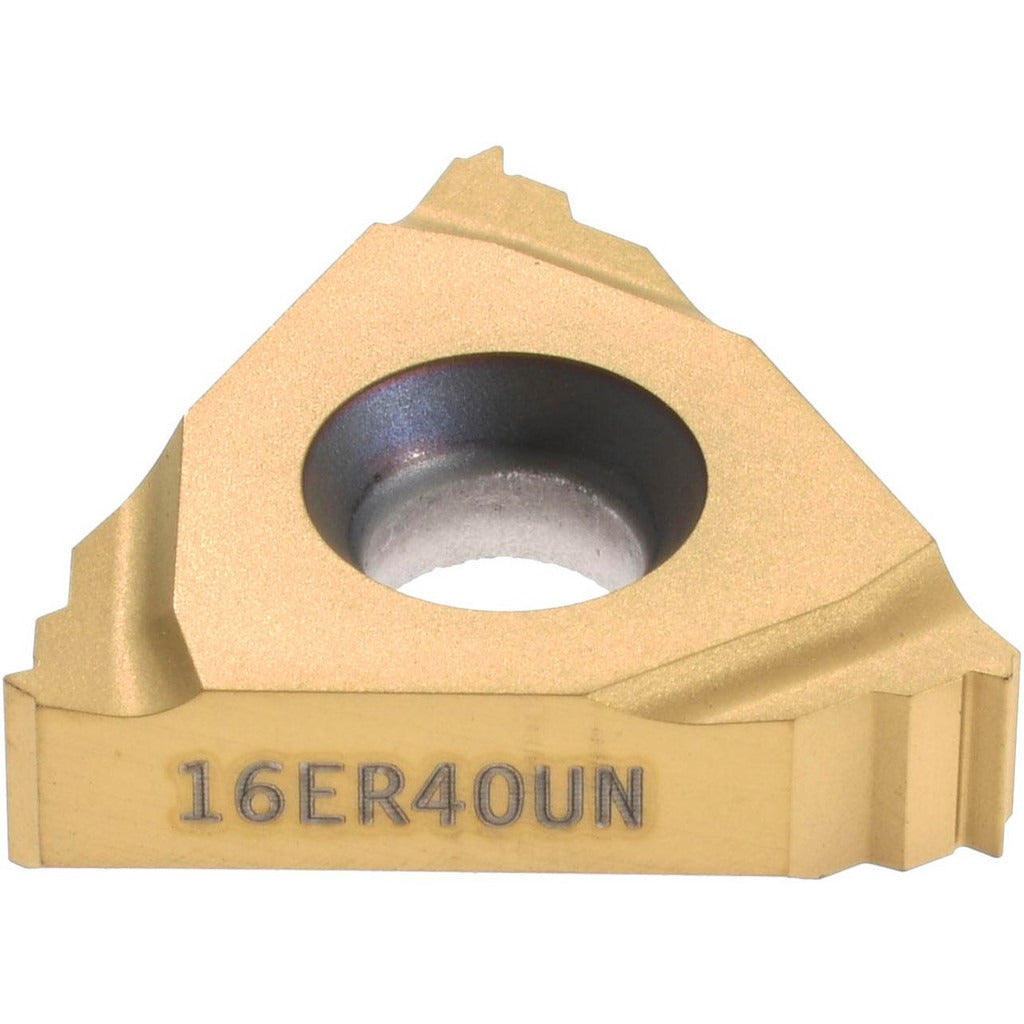

The SECO 00077861 is a laydown-style indexable threading insert designed for external UN thread turning operations. Built from solid carbide in the CP500 grade with a PVD-applied TiAlN/TiN finish, it delivers consistent thread profile accuracy at 40 threads per inch with a 60-degree included angle. The 3/8 inch inscribed circle and 0.1366 inch thickness conform to the 16ER insert style geometry. This insert is intended for right-hand external threading on CNC lathes and turning centers. It is installed and changed by machinists and CNC operators in production and job-shop environments where threaded-feature accuracy and insert repeatability are critical.

The 00077861 is suited for threading operations across a broad range of workpiece materials, including cast iron, non-ferrous alloys, steel, stainless steel, and heat-resistant superalloys, corresponding to material codes K, M, N, P, and S. It fits standard 16ER toolholders in the Snap-Tap series and is appropriate for both light-production and high-volume threading applications where UN-standard external thread forms are required. The ISO-standard geometry ensures interchangeability with compatible toolholder systems.

Key Features

• CP500 solid carbide grade with PVD TiAlN/TiN coating for wear resistance across multiple material groups
• 40 TPI UN external thread profile with 60-degree included angle for accurate thread form
• 16ER insert style with 3/8 inch inscribed circle and 0.1366 inch thickness
• Right-hand cutting orientation for standard external threading passes
• Snap-Tap series geometry compatible with 16ER-style toolholders
• ISO-standard dimensions for consistent seating and repeatable insert indexing

Compatibility

Designed for use in 16ER-style laydown threading toolholders within the Snap-Tap series. Compatible with workpiece material groups K, M, N, P, and S per ISO classification. Specific toolholder compatibility should be confirmed against the 16ER seat specification before installation.
