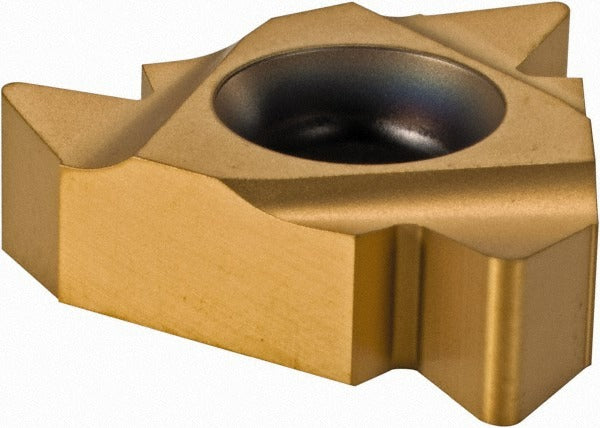

Seco 00075018 Threading Insert 4 Tpi Un Carbide CP500

Product Description

The SECO 00075018 is a laydown threading insert designed for external UN thread cutting at 4 threads per inch (TPI). Built from solid carbide with a TiAlN/TiN PVD coating, this insert belongs to the Snap-Tap series and carries the CP500 manufacturer grade. It features a 60-degree included angle and a right-hand cutting orientation, making it suited for standard external UN threading operations on CNC lathes and turning centers. The inscribed circle measures 15.88 mm and the insert thickness is 6.15 mm (0.2421 inches). Installation and indexing are handled by machinists and CNC operators working with compatible Snap-Tap toolholders.

This insert is intended for external threading applications conforming to UN thread standards at 4 TPI. The CP500 grade with PVD TiAlN/TiN coating supports a universal primary workpiece material designation, covering material codes K, M, N, P, and S, which span a broad range of common engineering materials including steel, stainless, cast iron, non-ferrous alloys, and heat-resistant superalloys. It is well suited for production threading on general-purpose turning equipment in both job shop and manufacturing environments.

Key Features

• Solid carbide construction with TiAlN/TiN PVD coating for wear resistance and surface protection
• 4 TPI UN external thread profile with 60-degree included angle
• Right-hand cutting orientation for standard external threading
• CP500 manufacturer grade rated for universal workpiece materials (K, M, N, P, S codes)
• Snap-Tap series insert style (27ER) for compatible toolholder systems
• ISO-standard geometry with 15.88 mm inscribed circle

Compatibility

Designed for use with Snap-Tap series toolholders accepting the 27ER insert style. Compatible with external threading applications requiring a UN 4 TPI thread form with a right-hand orientation. No additional specific model compatibility data was provided in the product input.

Installation Notes

This insert is installed and indexed by qualified machinists or CNC operators. Power down and lock out the machine spindle before changing or indexing the insert. Use the correct torque driver or clamping screw specified for the Snap-Tap toolholder to secure the insert. Inspect the seating pocket for chips or debris before installation to ensure proper insert seating and thread accuracy.
