Seco 00072312 WNMP332-MF1 CP200 Carbide Turning Insert

Product Description

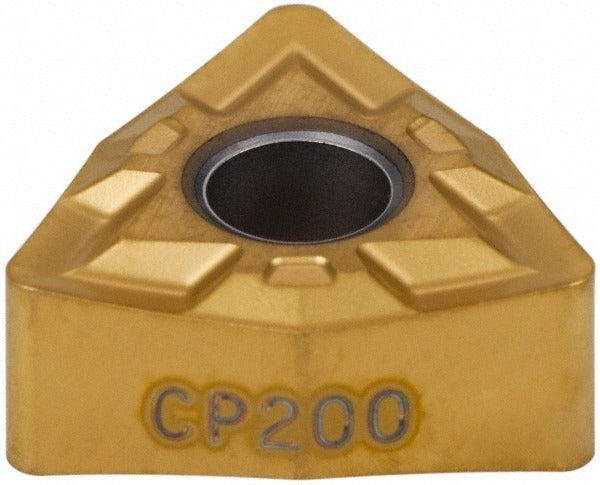

The SECO 00072312 is a solid carbide turning insert in the WNMP-MF1 series, designed for precision metal removal on CNC lathes and turning centers. It carries the industry-standard designation WNMP332-MF1 and is manufactured to ANSI and ISO specifications, with an ISO equivalent code of WNMG060408-MF1. The CP200 grade substrate is finished with a multilayer PVD TiAlN and TiN coating, which provides heat resistance and wear life suited to demanding cutting applications. The insert features an 80-degree trigon shape, a 3/8-inch inscribed circle, a 1/32-inch corner radius, and delivers six usable cutting edges per insert. The MF1 chip breaker geometry produces a honed cutting edge with a negative rake angle.

This insert is primarily rated for stainless steel and superalloys and titanium (ISO material groups M and S), making it well suited for aerospace, medical, and process-industry turning work. Secondary workpiece materials include steel and cast iron (ISO groups P and K). Applicable operations include turning, facing, and boring. The neutral hand orientation accommodates a wide range of toolholder setups on both manual and CNC equipment.

Key Features

• CP200 grade with multilayer PVD TiAlN and TiN coating for extended tool life in M and S material groups
• 80-degree trigon (W) insert shape with negative rake and honed cutting edge for controlled chip formation
• MF1 chip breaker geometry optimized for finishing and medium cuts in stainless steel and titanium
• Six cutting edges per insert for maximum value per unit
• Compatible with clamp, pin, and lever-lock toolholder holding methods
• Meets ANSI and ISO standards; ISO equivalent WNMG060408-MF1 for cross-reference

Compatibility

Designed as an OEM-style replacement or direct interchange for WNMP332-MF1 inserts used in standard WNMP-style toolholders accepting a 3/8-inch inscribed circle, 3/16-inch thickness insert with a 0.150-inch hole diameter. Compatible with clamp, pin, and lever-lock holding methods.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Power down and lock out the machine spindle before seating or indexing the insert. Ensure the insert pocket and seating surfaces are clean and free of chips or debris before clamping. Follow the toolholder manufacturer torque specifications for the clamping screw or lever-lock mechanism — do not overtighten.
