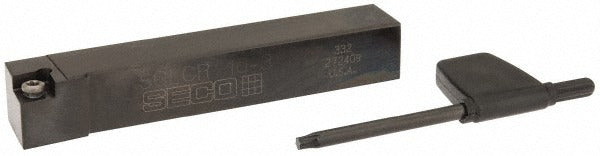

Seco 00071955 Sclc Indexable Turning Toolholder 5/8 Inch

Product Description

The SECO 00071955 is a right-hand SCLC-style indexable turning toolholder designed for external turning operations on CNC and manual lathes. It features a neutral rake angle of 0 degrees and a -5 degree lead angle, making it suitable for a wide range of workpiece materials. The toolholder accepts CC..32.5. series inserts secured by a screw-lock clamping method, providing rigid, repeatable insert positioning. The shank measures 0.625 inches wide by 0.625 inches tall with an overall length of 4 inches. Constructed from steel, this toolholder is built for the rigidity demands of production turning environments.

This toolholder is intended for turning applications in machine shops, job shops, and production facilities. Its universal primary workpiece material rating makes it appropriate for use across steel, cast iron, stainless steel, non-ferrous metals, and superalloys. The screw-lock insert retention method suits high-feed and interrupted-cut scenarios where insert security is critical. A licensed machinist or CNC programmer will typically specify and mount this holder in a tool turret or gang tooling setup.

Key Features

• SCLC toolholder style with right-hand cutting direction and neutral 0-degree rake angle
• Screw-lock insert holding method for secure, repeatable insert clamping
• Accepts CC..32.5. inserts including CCMT 32.52 geometry
• 0.625 inch square shank for standard tool block and turret compatibility
• Steel construction for rigidity in continuous and interrupted turning cuts
• Universal workpiece material rating covering material codes H, K, M, N, P, and S

Compatibility

Designed for use with CC..32.5. series inserts, including CCMT 32.52. Compatible insert inscribed circle is 0.375 inches. Intended as a direct-fit SCLC-style toolholder for external turning operations requiring a 0.625 inch square shank.

Installation Notes

Installation is performed by a machinist or CNC tooling technician. Power down and lock out the machine spindle before mounting or removing the toolholder from the turret or tool block. Use the appropriate torque wrench per the machine manufacturer's specifications when securing the shank clamp. Verify insert seating and screw engagement before resuming cutting operations.
