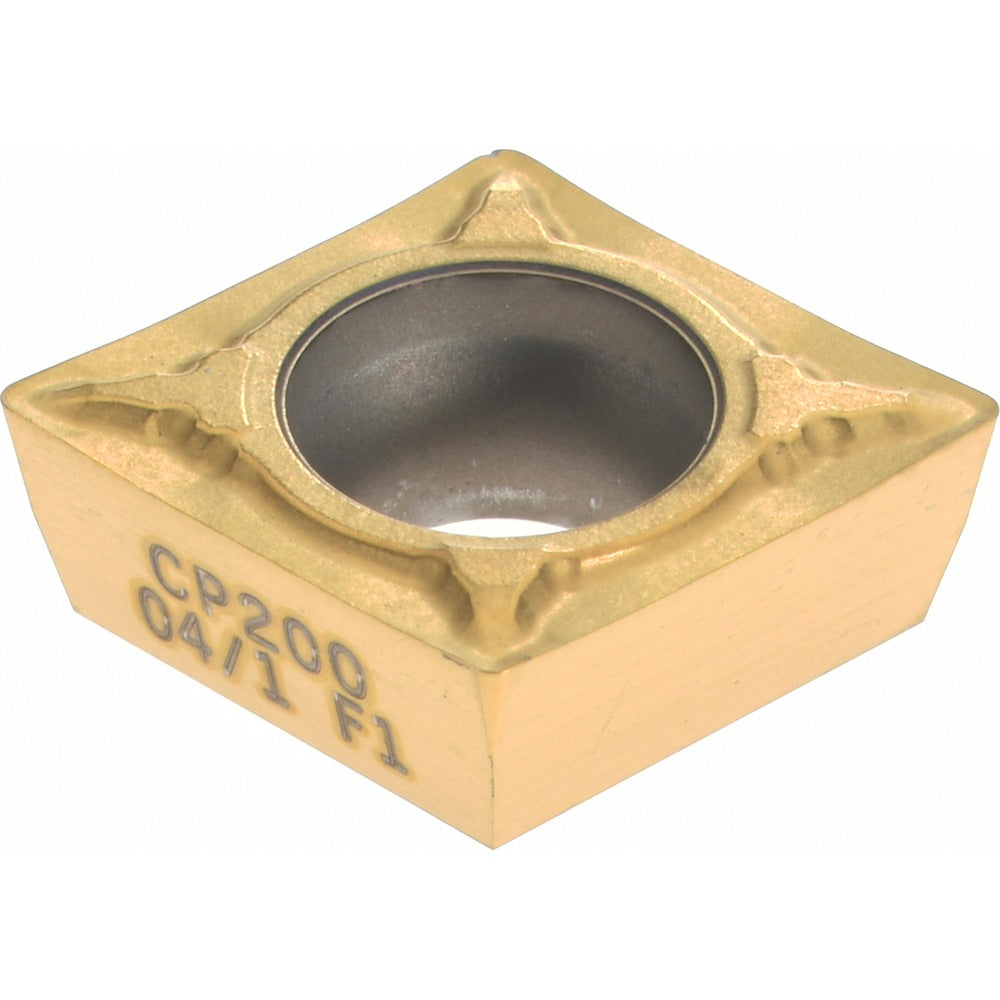

Seco 00064906 Turning Insert Cpmt 32.51-F1 CP200 Carbide

Product Description

The SECO 00064906 is a solid carbide turning insert in the CPMT-F1 series, designed for precision metal cutting in CNC and manual lathe applications. The insert features a diamond 80-degree shape with a positive rake geometry and sharp cutting edge, making it well suited for continuous and semi-continuous cutting passes. A multilayer PVD coating of TiAlN and TiN provides thermal resistance and wear protection across the cutting zone. With a 3/8 inch inscribed circle, a 1/64 inch corner radius, and a manufacturer grade of CP200, this insert delivers controlled chip formation via the F1 chip breaker on stainless steel, superalloys, titanium, steel, and cast iron.

This insert is built for boring, facing, and turning operations where tight tolerances and surface finish matter. It is a neutral-hand insert held by screw, compatible with CPMT-style toolholders. Primary workpiece materials are stainless steel, superalloys, and titanium (ISO material codes M and S). Secondary applications include steel and cast iron (ISO codes P and K). It conforms to both ANSI and ISO standards and carries ISO code CPMT09T304-F1 and industry standard number CPMT32.51-F1. Material grade designations are M01, M10, M20, S10, and S20. This insert is sold individually with a minimum order quantity of 10.

Key Features

• Diamond 80-degree insert shape with positive rake and sharp cutting edge for clean chip evacuation
• F1 chip breaker geometry engineered for stainless steel, superalloys, and titanium
• Multilayer PVD TiAlN and TiN coating for heat resistance and extended tool life
• Screw-held mounting with neutral hand orientation fits standard CPMT toolholders
• Two cutting edges per insert; multi-use for boring, facing, and turning operations
• Conforms to ANSI and ISO standards; ISO code CPMT09T304-F1

Compatibility

Designed for use in CPMT-style screw-clamp toolholders. Compatible with CNC and manual lathes performing boring, facing, and turning on stainless steel, superalloys, titanium, steel, and cast iron workpieces.

Installation Notes

Installation is performed by machining professionals or toolroom technicians. Before indexing or replacing the insert, power down the machine and confirm the spindle has come to a full stop. Use the appropriate Torx or hex key to seat the screw clamp; do not overtighten, as insert cracking can result. Verify insert seating in the pocket before resuming cutting operations.
