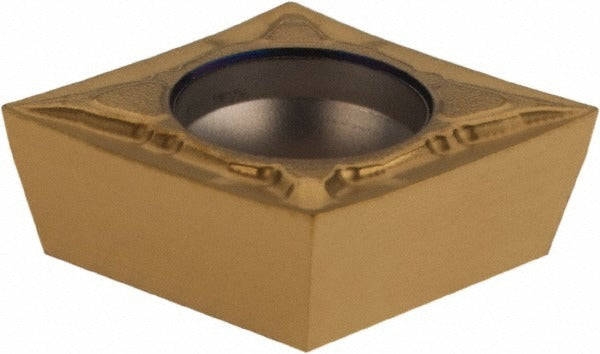

Seco 00064904 Turning Insert CPMT32.50.5-F1 CP200 Carbide

Product Description

The SECO 00064904 is a solid carbide turning insert in the CPMT-F1 series, designed for precision metal cutting in CNC turning applications. This insert carries grade CP200 with a multilayer PVD TiAlN and TiN coating, offering wear resistance and thermal stability during interrupted and continuous cuts. The 80-degree diamond shape provides a strong cutting geometry, and the F1 chip breaker is engineered for positive-rake cutting with sharp edge performance. With a 3/8-inch inscribed circle and a 0.008-inch corner radius, this insert is sized for moderate to light depths of cut in high-precision turning operations. It supports screw-type insert holding and delivers two usable cutting edges per insert.

This insert is well suited for machining stainless steel, superalloys, and titanium as its primary workpiece materials, with secondary suitability for steel and cast iron. Typical applications include external turning, facing, and boring operations on CNC lathes and turning centers in production and job-shop environments. The neutral hand orientation and positive rake make it appropriate for a wide range of toolholders accepting CPMT-style inserts. This insert is used by machinists and tooling specialists in industrial manufacturing, aerospace, and precision component production. It conforms to both ANSI and ISO standards and carries ISO code CPMT09T302-F1 for cross-reference purposes.

Key Features

• CP200 grade solid carbide with multilayer PVD TiAlN and TiN coating for extended tool life on difficult materials
• F1 chip breaker with sharp cutting edge and positive rake geometry for clean cuts on stainless steel, superalloys, and titanium
• 80-degree diamond insert shape with 11-degree relief angle for strong, versatile cutting geometry
• Screw-type insert holding method for secure, repeatable positioning in compatible toolholders
• Two cutting edges per insert for improved cost-per-edge value in production runs
• Multi-use capability across boring, facing, and turning operations in a single insert

Compatibility

Designed as an OEM-style replacement and direct-fit insert for CPMT-style screw-on toolholders accepting an 80-degree diamond insert with a 3/8-inch inscribed circle. Conforms to ANSI and ISO standards; ISO industry standard number CPMT09T302-F1 and ANSI industry standard number CPMT32.50.5-F1 apply for cross-reference with compatible toolholder systems.

Installation Notes

Installation is performed by qualified machinists or tooling technicians. Power down and lock out the machine spindle before seating or changing inserts. Use the appropriate torx or hex key to secure the clamping screw to the toolholder specification; do not overtighten, as this can fracture the carbide body. Verify insert seating and edge orientation before resuming machine operation.
