Seco 00064785 Threading Insert 16NR AG60 CP500 Carbide

Product Description

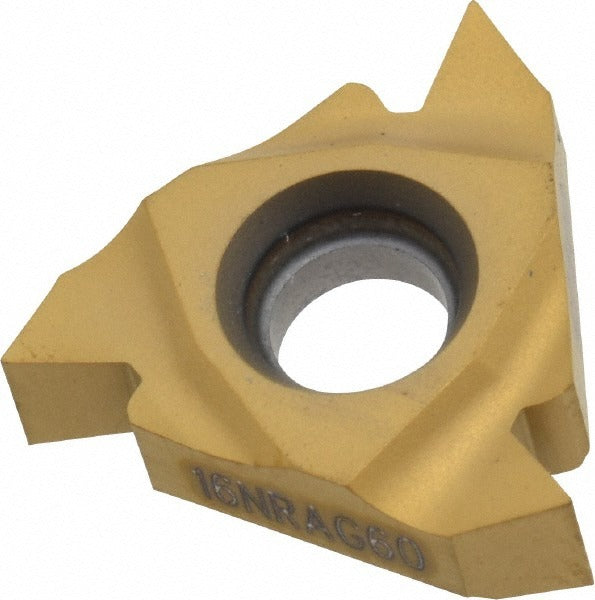

The SECO 00064785 is a laydown threading insert designed for internal thread cutting operations. Built from solid carbide in the micrograin grade CP500, it features a PVD-applied TiAlN/TiN coating that extends tool life across a wide range of workpiece materials. The insert profiles a 60-degree included angle with a partial profile form and covers a threads-per-inch range of 48 to 8 TPI, equivalent to a pitch range of 0.50 to 3.00 mm. Right-hand cut geometry makes it suited for standard internal threading passes. Machining professionals and toolroom technicians working with threading toolholders in the 16NR Snap Tap series will find this insert a direct, ready-to-use consumable.

This insert is applied in internal threading operations on CNC lathes and manual turning centers where a 3/8-inch inscribed circle (0.3750 inches) laydown-style insert is required. The CP500 grade with PVD coating is rated for universal workpiece material compatibility, covering ISO material groups K, M, P, and S. This makes it appropriate for threading stainless steels, carbon steels, cast irons, and high-temperature alloys in both production and job-shop environments. It is sized and styled for toolholders accepting the 16NR insert designation.

Key Features

• Solid carbide micrograin substrate in manufacturer grade CP500 for wear resistance and edge integrity
• PVD-applied TiAlN/TiN coating for extended tool life across universal workpiece materials
• Covers 48 to 8 TPI range (0.50 to 3.00 mm pitch) in a single insert profile
• Right-hand internal partial profile 60-degree thread form
• 0.3750-inch inscribed circle with 0.0030-inch corner radius for consistent thread geometry
• Conforms to ISO standards; fits 16NR Snap Tap series toolholders

Compatibility

Designed for use with 16NR series Snap Tap threading toolholders accepting a 3/8-inch inscribed circle laydown insert. Compatible with ISO-standard toolholder systems requiring the 16NR/L AG60 insert designation.

Installation Notes

Threading inserts of this type are installed and removed by qualified machinists or toolroom technicians following machine lockout/tagout procedures before any toolholder access. Ensure the insert seat and clamping surfaces are clean and free of chips before seating the insert. Do not exceed the toolholder manufacturer's recommended clamping torque for this insert size. Confirm spindle direction and toolholder orientation match the right-hand cut designation before initiating a threading cycle.
