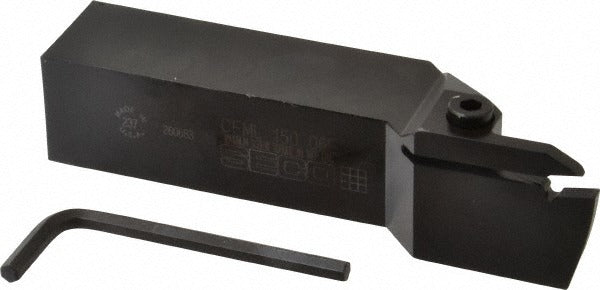

Seco 00059812 Lh Cfml Indexable Turning Toolholder

Product Description

The SECO 00059812 is a left-hand CFML-style indexable turning toolholder built for cut-off and grooving operations on CNC lathes and turning centers. It features a 1.5-inch by 1.5-inch square shank and an overall length of 7 inches. The clamp-style insert holding method secures LC..1606.. series inserts, including LCGN, LCMF, and LCMR geometries. Built from steel, it supports coolant-through capability for improved chip evacuation and tool life in demanding material removal applications. The 90-degree lead angle and multi-directional turning design make it suitable for a range of turning strategies across universal workpiece materials.

This toolholder is part of the SECO Multi-Directional Turning (MDT) series and is intended for left-hand cutting direction applications. It is suited for use on standard and multi-axis CNC turning equipment where cut-off and grooving operations are performed. The toolholder accommodates universal workpiece materials including steel, stainless, cast iron, non-ferrous alloys, superalloys, and hardened materials, covering material codes H, K, M, N, P, and S. The 2.61-inch head length and 2.0-inch back-of-bar-to-cutting-edge dimension support precise positioning in the tool turret.

Key Features

• Left-hand CFML toolholder style with 90-degree lead angle for cut-off and grooving
• 1.5 x 1.5 inch square shank with 7-inch overall length
• Clamp-style insert retention accepts LC..1606.. inserts including LCGN, LCMF, and LCMR
• Coolant-through design for improved chip control and thermal management
• Multi-directional turning capability for flexible machining strategies
• Steel construction rated for universal workpiece material compatibility (H, K, M, N, P, S)

Compatibility

Designed to accept LC..1606.. series inserts, including LCGN, LCMF, and LCMR geometries. Compatible insert size code is LC1606. Part of the SECO Multi-Directional Turning (MDT) series.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician following the machine tool manufacturer's setup procedures. Ensure the machine spindle is fully stopped and the turret is in a safe index position before mounting or removing the toolholder. Verify insert seating and clamp screw engagement before resuming cutting operations. Coolant-through connection should be confirmed compatible with the turret coolant supply port before use.
