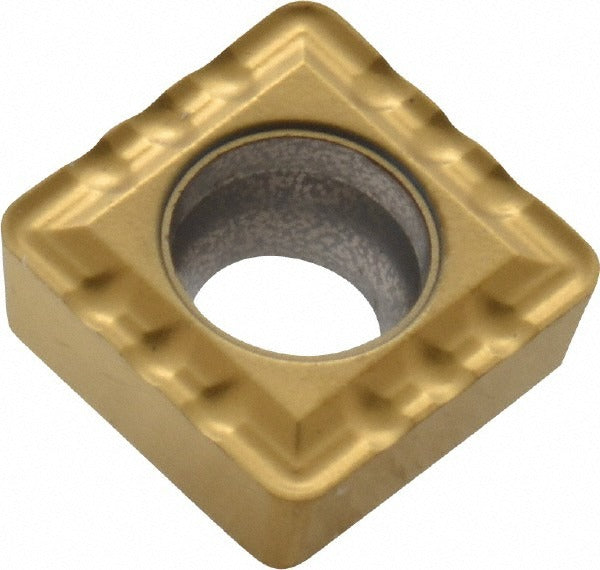

Seco 00059713 Indexable Drill Insert SCGX07P1 T250D Carbide

Product Description

The SECO 00059713 is a solid carbide indexable drill insert designed for use with Perfomax series indexable drills. Manufactured in the SCGX insert style with a 90-degree square shape and 7-degree relief angle, this insert features a T250D manufacturer grade micrograin carbide substrate with a PVD coating process. The P1 chipbreaker geometry is optimized for chip control across a broad range of workpiece materials. With an inscribed circle diameter of 0.3120 inches and a corner radius of 0.0310 inches, this insert delivers precise, repeatable cutting performance. Licensed machinists and toolroom technicians are the primary installers and end users.

This insert is suited for drilling operations in universal workpiece material categories including cast iron, stainless steel, non-ferrous metals, steel, and high-temperature alloys, corresponding to ISO material codes H, M, N, P, and S. It is compatible with SECO Perfomax series indexable drill bodies that accept SCGX insert size 07 (insert size code 070308). Typical applications include production drilling in CNC machining centers and turning centers across both job-shop and high-volume manufacturing environments.

Key Features

• SCGX insert style with 90-degree square geometry and 7-degree relief angle for positive cutting action
• T250D micrograin solid carbide substrate with PVD coating for wear resistance and edge integrity
• P1 chipbreaker designed for broad material compatibility across ISO groups H, M, N, P, and S
• Inscribed circle of 0.3120 inches (7.94 mm) and corner radius of 0.0310 inches (0.80 mm) for accurate fitment
• Part of the Perfomax series, engineered for indexable drill body systems requiring SCGX07 inserts
• Sold individually; minimum order quantity is 10 units

Compatibility

Designed for use with SECO Perfomax series indexable drill bodies that accept SCGX insert size 070308. Compatible with universal workpiece materials across ISO material codes H, M, N, P, and S.

Installation Notes

Indexable drill inserts are seated and secured by machinist or toolroom personnel following the drill body manufacturer torque and seating procedures. Always power down and lock out the machine spindle before indexing or replacing inserts. Inspect the insert pocket and clamping screw for wear or damage before seating a new insert. Follow applicable shop safety standards and the drill body manufacturer guidelines for proper insert orientation and secure clamping.
