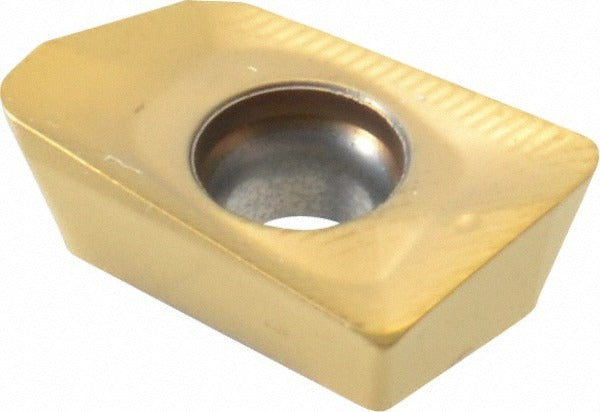

Seco 00054991 Milling Insert XOMX120412TR-ME08 F40M

Product Description

The SECO 00054991 is a solid carbide milling insert carrying the ANSI and ISO designation XOMX120412TR-ME08 in manufacturer grade F40M. It is a single-sided, right-hand parallelogram insert with a positive rake geometry and a T-Land cutting edge style. The insert features a PVD-applied TiAlN and TiN dual coating over a fine-grain carbide substrate. With two cutting edges, a 15-degree relief angle, and a 20.1-degree rake angle, it is engineered for productive face and shoulder milling in demanding production environments. Licensed machinists and CNC toolroom technicians are the primary users.

This insert is suited for milling of steel, stainless steel, cast iron, non-ferrous metals, superalloys, and titanium, covering ISO material groups P, K, S, and N. The ME08 chip breaker geometry controls chip flow across this broad material range. It fits the SECO R217.69-12 and R220.69-12 cutter series and is held in the toolholder by a screw-clamp method. Typical applications include roughing and semi-finishing passes in both horizontal and vertical machining center setups. The 90-degree included angle supports true shoulder milling operations.

Key Features

• PVD-coated TiAlN and TiN over fine-grain solid carbide substrate for extended tool life
• ME08 chip breaker for effective chip control across steel, cast iron, superalloys, and non-ferrous materials
• Positive rake geometry with 20.1-degree rake angle reduces cutting forces
• T-Land cutting edge style improves edge strength and resistance to chipping
• Right-hand, single-sided insert with 2 usable cutting edges per insert
• Screw-clamp insert holding method for secure, repeatable seating in the cutter body

Compatibility

Compatible with SECO cutter series R217.69-12 and R220.69-12. Insert size code is 120412 within the XOMX-12 series. ANSI and ISO code: XOMX120412TR-ME08.

Installation Notes

Installation is performed by qualified machinists or CNC toolroom technicians. Ensure the machine spindle is fully stopped and locked out before changing inserts. Seat the insert firmly against the pocket locating surfaces before tightening the clamp screw, and use the correct torque wrench per the toolholder manufacturer's specification. Inspect the pocket for chips or debris before seating a new insert to prevent micro-fracture at the cutting edge.
