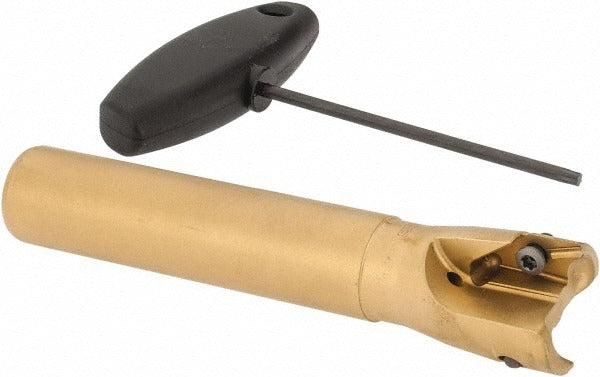

Seco 00054103 Indexable Copy End Mill 1.25in 2 Flute

Product Description

The SECO 00054103 is an indexable copy end mill designed for contour milling and profiling operations on CNC machining centers. It accepts two VPGX 2206..E.-E10 inserts secured by screw clamping, delivering a 1.25-inch cutting diameter with a maximum depth of cut of 0.394 inches. The through-coolant design channels cutting fluid directly to the cutting zone, extending insert life and improving chip evacuation in demanding milling applications. The 1-inch cylindrical shank provides a rigid connection to standard toolholders. This tool is appropriate for machinists and CNC operators working in production or job-shop environments.

The 00054103 is suited for copy milling, ramping, and 3D contouring on a range of workpiece materials. The R217.97 toolholder style and 2-flute configuration make it effective for moderate material removal in both roughing and semi-finishing passes. The 6-inch overall length and 4-inch shank length provide adequate reach for typical milling setups. It operates at up to 40,000 RPM, making it compatible with high-speed spindles. This tool is intended for professional machine shop use and is installed by qualified CNC machinists or tool-and-die tradespeople.

Key Features

• 1.25-inch cutting diameter with 0.394-inch maximum depth of cut for copy and contour milling
• Through-coolant design for improved chip evacuation and insert longevity
• Accepts 2 VPGX 2206..E.-E10 inserts with screw holding method for secure, repeatable seating
• 2-flute configuration supports both roughing and semi-finishing operations
• Rated up to 40,000 RPM for compatibility with high-speed machining centers
• R217.97 series toolholder style with 1-inch cylindrical shank diameter

Compatibility

Designed for use with VPGX 2206..E.-E10 inserts in the R217 and R217.97 toolholder series. Manufacturer catalog number R217.97-01.25-0-V22.2A corresponds to this configuration. Verify spindle interface and coolant-through capability of the machine before installation.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Ensure the machine spindle is fully powered down and locked out before mounting or removing the tool. Confirm the toolholder bore and retention system are clean and free of chips before seating the cylindrical shank. Torque insert clamping screws to the insert manufacturer specification and verify coolant-through passages are unobstructed before running the program.
