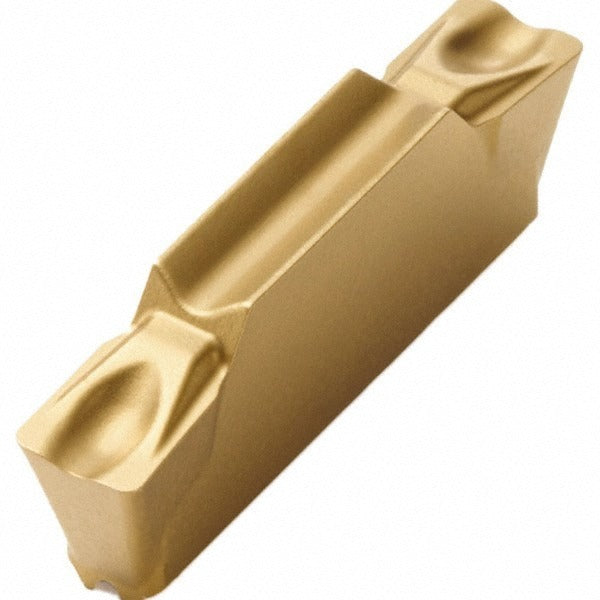

Seco 00052361 Turning Insert CP600 Solid Carbide Pvd

Product Description

The SECO 00052361 is a solid carbide multi-directional turning insert in the MDT series, designed for external turning and grooving operations on CNC lathes and turning centers. It carries a CP600 manufacturer grade with a TiAlN/TiN coating applied via PVD process, giving it strong wear resistance across a range of workpiece materials. The insert features a 0.118 inch cutting width, 0.177 inch cutting height, and a 0.016 inch corner radius. The LCMF160304-0300-MC style designation with an MC chipbreaker geometry makes this insert suitable for controlled chip evacuation in medium-duty turning applications. It is a neutral-hand, double-end insert, which extends tool life by allowing both ends to be used before replacement.

This insert is used in multi-directional turning operations on CNC turning centers in production and job shop environments. The CP600 grade with PVD TiAlN/TiN coating is rated for workpiece material groups M (stainless steel), N (non-ferrous), P (steel), and S (heat-resistant superalloys), making it a versatile option for shops running mixed-material work. It is typically installed by machinists and CNC operators in both production and maintenance machining contexts. The double-end design suits high-volume operations where tool change frequency and insert cost per edge are critical considerations.

Key Features

• CP600 grade solid carbide with PVD-applied TiAlN/TiN coating for extended wear life
• 0.118 inch maximum cutting width and 0.177 inch cutting height for precise groove and turn profiles
• 0.016 inch corner radius with LCMF insert style in neutral hand orientation
• Double-end insert provides two usable cutting edges per insert
• MC chipbreaker geometry supports controlled chip formation in medium-duty cuts
• Compatible with workpiece material groups M, N, P, and S per ISO classification

Compatibility

The 00052361 follows the LCMF160304-0300-MC style designation within the SECO MDT series. It is intended for use in MDT-series toolholders designed to accept LCMF160304 inserts. Verify toolholder insert pocket specifications before ordering to confirm fitment.

Installation Notes

Insert installation and indexing should be performed by a qualified machinist or CNC operator with the machine fully stopped and all axes at a safe position. Use the correct torque wrench and insert screw specified by the toolholder manufacturer — do not overtighten the clamping screw, as this can fracture the carbide. Inspect the insert pocket for debris or wear before seating the insert. Follow shop safety protocols and machine guarding requirements during any tooling change.
