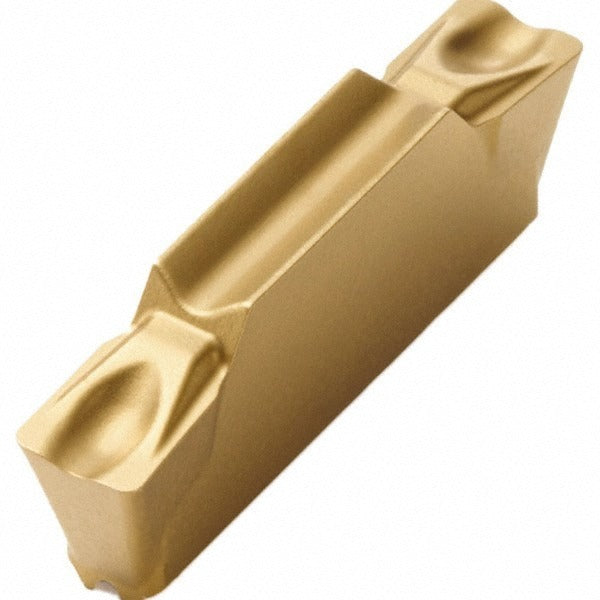

Seco 00052350 Turning Insert CP600 Solid Carbide LCMF160302

Product Description

The SECO 00052350 is a solid carbide multi-directional turning insert in the MDT series, designed for use on CNC turning centers and multi-task machines. It carries a PVD-applied TiAlN/TiN coating in the CP600 grade, which is suited for demanding cutting conditions across a range of workpiece materials. The insert measures 0.118 inches maximum cutting width and 0.177 inches cutting height, with a 0.008 inches corner radius. The double-ended LCMF160302 geometry provides a neutral hand orientation and an MC chipbreaker configuration. A 7-degree relief angle supports clean chip evacuation. Machinists and CNC operators working in production turning and grooving applications install this insert.

This insert is used in multi-directional turning and grooving operations on CNC lathes and turning-milling centers. Primary workpiece material codes listed for this insert are M, N, P, and S, covering stainless steels, non-ferrous materials, carbon and alloy steels, and superalloys. The LCMF160302-0300-MC style designation identifies both the geometry and the 3.00 mm cutting width in the MDT series tooling system. It is a double-end insert, allowing two usable cutting edges per insert, which is relevant for tooling cost management in production environments.

Key Features

• CP600 grade solid carbide with PVD TiAlN/TiN coating for extended tool life in steel, stainless, and superalloy cuts
• Double-ended design provides two usable cutting edges per insert
• MC chipbreaker geometry supports controlled chip flow in multi-directional turning
• Neutral hand orientation suits both left-hand and right-hand toolholder setups
• 7-degree relief angle reduces rubbing and supports clean edge engagement
• LCMF160302 insert style compatible with MDT series toolholders

Compatibility

Designed for use with MDT series toolholders accepting the LCMF160302 insert style. Compatible workpiece material codes include M (stainless steel), N (non-ferrous), P (carbon and alloy steel), and S (superalloys) as stated in the product specifications.

Installation Notes

Installation is performed by a machinist or CNC tooling technician. Power down the machine and follow lockout/tagout procedures before seating or replacing inserts. Use the correct torque driver specified by the toolholder manufacturer when securing the clamping screw — do not overtighten. Inspect the insert pocket and seating surfaces for debris before installing a new insert.
