Seco 00050698 Threading Insert 11.5 Tpi Nptf Carbide CP500

Product Description

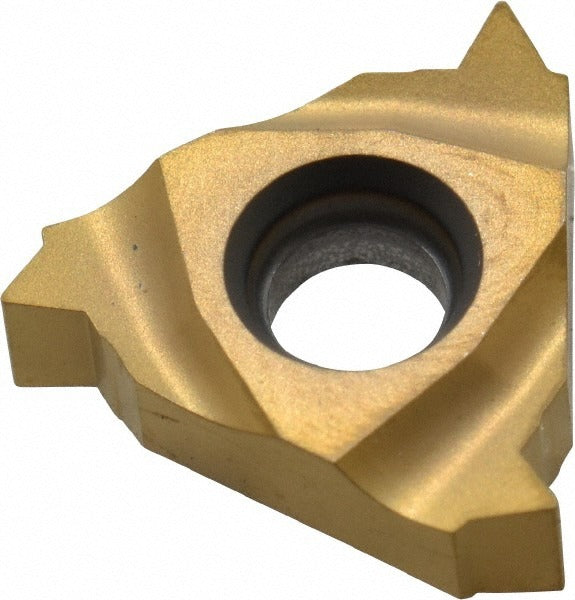

The SECO 00050698 is a laydown threading insert designed for cutting internal NPTF threads at 11.5 threads per inch. Built from micrograin solid carbide in the CP500 grade, it carries a PVD-applied TiAlN/TiN coating for wear resistance across a wide range of workpiece materials. The insert follows the 16NR style, operates right-hand, and is part of the Snap Tap series. With a 3/8-inch inscribed circle and a thickness of 0.1366 inches, it seats consistently in compatible toolholders for repeatable thread form and dimensional accuracy. Machinists and toolroom technicians working on NPTF pipe-thread applications install this insert in CNC lathes and manual threading setups.

This insert is suited for internal NPTF pipe-thread production where a 60-degree included angle and a 11.5 TPI profile are required. The CP500 grade with PVD coating supports cutting in universal workpiece materials, covering cast iron, non-ferrous alloys, non-metals, steel, and heat-resistant superalloys as indicated by material codes K, M, N, P, and S. It is appropriate for production and maintenance shops producing or repairing NPT-standard pipe-thread connections in fittings, manifolds, and similar components.

Key Features

• Micrograin solid carbide construction in manufacturer grade CP500 for rigidity and edge retention
• PVD-applied TiAlN/TiN coating for extended tool life across universal workpiece material classes
• 11.5 TPI NPTF internal thread form with 60-degree included angle per ISO and NPTF standards
• Right-hand cutting orientation, 16NR insert style, Snap Tap series
• 3/8-inch inscribed circle (0.3750 inches) with 0.0020-inch corner radius for precise thread geometry
• Consistent seating thickness of 0.1366 inches for repeatable insert indexing

Compatibility

Designed as an OEM-style replacement or direct-fit threading insert for toolholders accepting the 16NR laydown insert style with a 3/8-inch inscribed circle, used in internal NPTF threading applications.

Installation Notes
