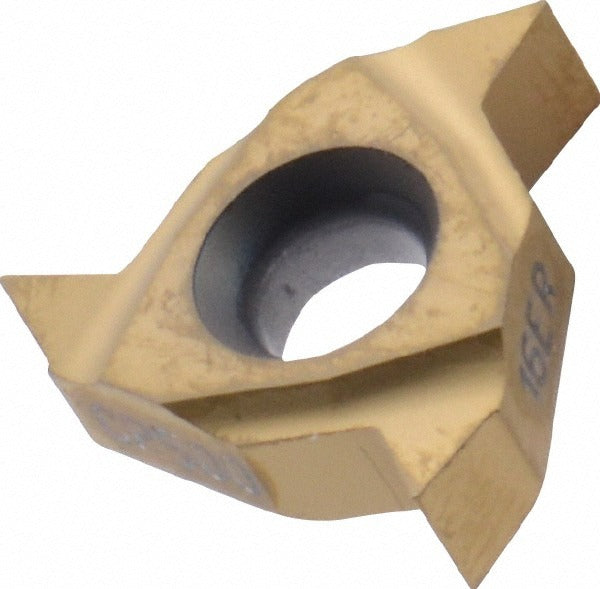

Seco 00050091 Threading Insert 16ER AG55 CP500 Carbide

Product Description

The SECO 00050091 is a laydown threading insert designed for external thread-cutting operations on CNC lathes and turning centers. Built from solid carbide in the CP500 manufacturer grade and finished with a PVD-applied TiAlN/TiN coating, this insert delivers consistent cutting performance across a broad range of workpiece materials. It follows the 16ER insert style and is sized for a 9.53 mm inscribed circle with a thickness of 3.47 mm (0.1366 inches). The partial profile 55-degree thread form covers a pitch range of 0.50 to 3.00 mm (48 to 8 TPI), making it a versatile choice for threading in production environments.

This insert is part of the SECO Snap-Tap series and is intended for right-hand external threading applications. It is suited for use on a wide range of workpiece materials, including ferrous metals, cast iron, non-ferrous alloys, and heat-resistant superalloys, reflected by primary workpiece material codes K, M, P, and S. The ISO-standard geometry and partial profile design allow a single insert to cut multiple thread forms within the 55-degree included angle, reducing tool inventory and changeover time in busy turning shops.

Key Features

• Solid carbide construction in CP500 grade with PVD-applied TiAlN/TiN coating for wear resistance and thermal stability
• Partial profile 55-degree thread form covering 0.50 to 3.00 mm pitch (48-8 TPI) for multi-thread versatility
• 16ER insert style with 9.53 mm inscribed circle and 3.47 mm thickness for consistent seating in compatible toolholders
• Right-hand external threading orientation with a 0.0800-inch corner radius
• ISO-compliant geometry suitable for universal workpiece materials across K, M, P, and S material groups
• Part of the SECO Snap-Tap series, designed for quick indexing and repeatable thread quality

Compatibility

Designed as an OEM-style replacement or direct-fit insert for 16ER-style external threading toolholders conforming to ISO insert standards within the Snap-Tap series.

Installation Notes

Installation and indexing should be performed by a qualified machinist or CNC setup technician. Power down and lock out the machine before seating or replacing inserts. Use the appropriate torx or clamp screw specified for the toolholder to secure the insert without over-torquing. Verify thread pitch and insert orientation against the job drawing before commencing the threading pass.
