Seco 00049968 Threading Insert 8 Tpi Un Carbide CP500

Product Description

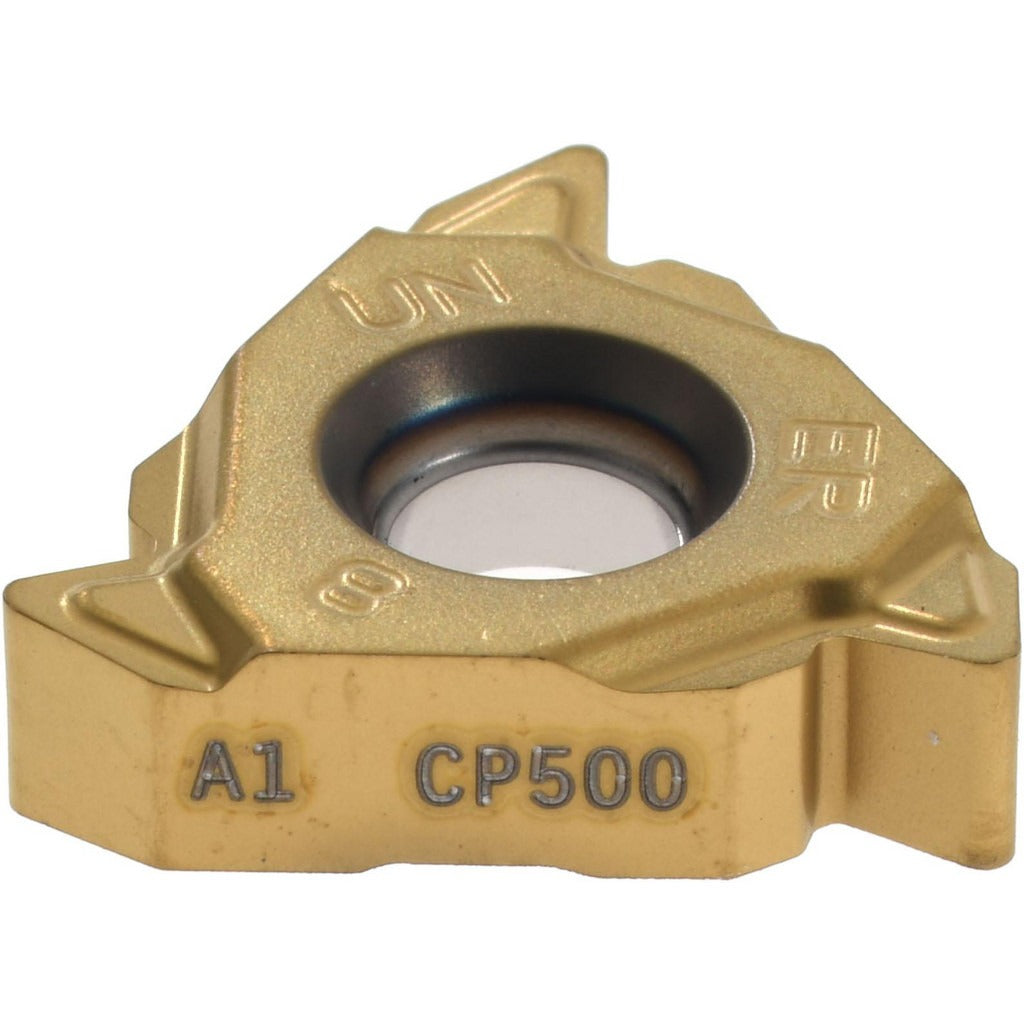

The SECO 00049968 is a laydown threading insert engineered for external UN thread profiles at 8 threads per inch. Built from solid carbide with a CP500 manufacturer grade, it features a TiAlN/TiN PVD coating applied through physical vapor deposition. The A1 chipbreaker geometry supports consistent chip control during threading operations on cast iron, stainless steel, and carbon steel. The 60-degree included angle matches the UN thread form, and the right-hand cutting orientation suits standard external threading passes on CNC lathes and manual thread-cutting setups. Part of the SECO Snap-Tap series, this insert is designed for repeatability in high-volume threading applications where dimensional accuracy matters.

This insert is intended for external threading on round workpieces using a compatible 16ER-style toolholder. It suits production environments where ISO-standard threading inserts are specified. Primary workpiece materials include cast iron (K), stainless steel (M), and steel (P), making it a practical choice for general machining shops, aerospace component work, and industrial parts production. The PVD TiAlN/TiN coating helps extend tool life in abrasive and work-hardening materials. This product is sold individually with a minimum order quantity of 2 units.

Key Features

• UN external thread profile, 8 TPI, 60-degree included angle
• CP500 solid carbide grade with PVD TiAlN/TiN coating for wear resistance
• A1 chipbreaker geometry for controlled chip evacuation
• Right-hand cutting orientation, 16ER insert style, Snap-Tap series
• ISO-standard geometry; compatible with cast iron, stainless steel, and steel workpieces
• Inscribed circle of 0.375 inches; thickness of 0.1366 inches

Compatibility

Designed for use in 16ER-style external threading toolholders. Suitable for UN thread applications where ISO-standard laydown threading inserts are specified. Confirm toolholder pocket geometry before installation.

Installation Notes

This insert is installed by a qualified machinist or CNC operator. Power down and lock out the machine spindle before seating or replacing the insert. Use the manufacturer-recommended torque wrench for the clamping screw to avoid insert movement or fracture. Inspect the toolholder pocket for debris or damage before each insert change.
