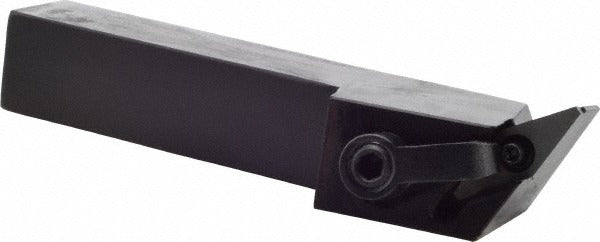

Seco 00049604 Rh Mvtn Indexable Turning Toolholder

Product Description

The SECO 00049604 is a right-hand MVTN-style indexable turning toolholder engineered for external turning operations on CNC and manual lathes. Configured with a negative 4-degree rake angle, this toolholder seats VNMG 332 inserts and holds them in place with a clamp-style clamping method. The square shank measures 0.75 inches wide by 0.75 inches tall with an overall length of 4.5 inches, making it a common fit for standard lathe tool blocks and quick-change toolpost systems. Cutting direction is right hand and coolant-through is not supported. This toolholder is intended for installation and setup by machinists and CNC turning professionals working across a wide range of workpiece materials.

This toolholder is rated for universal primary workpiece material compatibility, covering material codes H, K, M, N, P, and S. That range includes steel, stainless steel, cast iron, non-ferrous metals, high-temperature alloys, and non-metallic materials. It fits into the SECO Multi-Directional Turning series and is suited for general external turning applications in production, job shop, and maintenance machining environments where consistent insert indexing and reliable clamping are priorities.

Key Features

• Negative 4-degree rake angle for stable cutting geometry on a broad range of workpiece materials
• Accepts VNMG 332 inserts with a 3/8-inch inscribed circle
• Clamp-style insert holding method for secure, repeatable seating
• Square 3/4-inch by 3/4-inch shank for compatibility with standard lathe toolpost systems
• Overall length of 4.5 inches with a head length of 1.71 inches
• Right-hand cutting direction; part of the SECO Multi-Directional Turning series

Compatibility

Designed to accept VNMG 332 inserts with compatible insert size code VN33. Fits standard lathe tool blocks and quick-change toolpost holders accommodating a 3/4-inch square shank.

Installation Notes

Installation is performed by a qualified machinist or CNC setup technician. Ensure the machine spindle is fully stopped and all power is off before mounting or adjusting the toolholder. Torque the insert clamp screw and toolpost fasteners according to the machine manufacturer and insert manufacturer guidelines. Inspect the insert seat and clamping components for chips or debris before seating a new insert.
