Seco 00049532 Threading Insert 60 Deg 48-8 Tpi Carbide CP500

Product Description

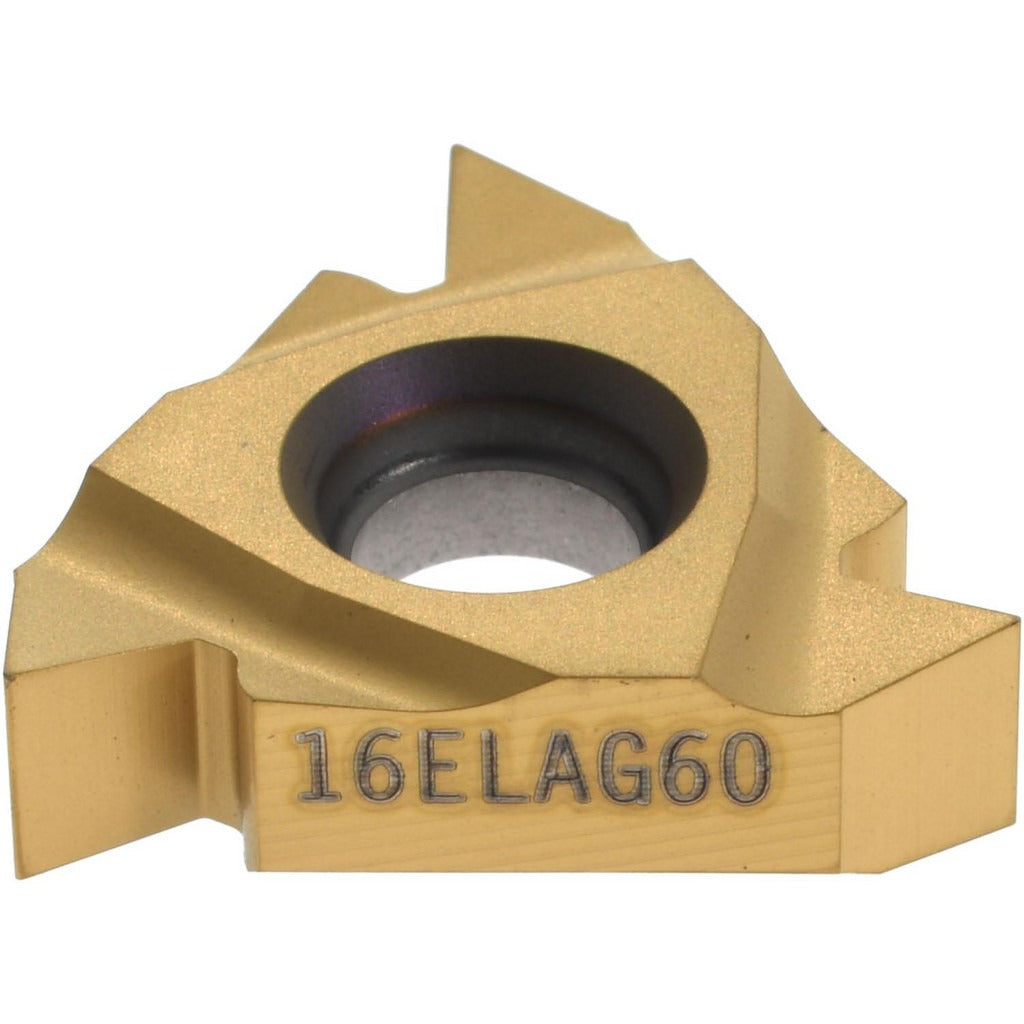

The SECO 00049532 is a laydown threading insert designed for external thread cutting operations. It features a partial profile 60-degree thread form with a left-hand cutting orientation and covers a range of 48 to 8 TPI with a metric pitch range of 0.50 to 3.00 mm. The insert is manufactured from solid carbide in the CP500 grade and carries a TiAlN/TiN PVD coating for extended tool life across a wide range of workpiece materials. The 16EL insert style fits compatible Snap-Tap toolholders. Inscribed circle diameter measures 3/8 inches and insert thickness is 0.1366 inches. This insert is suited for use by machinists and tool-and-die professionals working on CNC lathes and manual threading setups.

This insert is intended for external threading applications where a left-hand partial profile 60-degree thread form is required. The CP500 grade and universal material code classification make it applicable across steel, stainless steel, cast iron, and high-temperature alloys. It is commonly used in production and maintenance machining environments where consistent thread form and insert interchangeability are priorities. The Snap-Tap series designation indicates compatibility with the corresponding SECO toolholder platform designed for laydown-style threading inserts.

Key Features

• Left-hand external threading with partial profile 60-degree included angle
• Covers 48 to 8 TPI and 0.50 to 3.00 mm pitch in a single insert
• CP500 solid carbide grade with TiAlN/TiN PVD coating for wear resistance
• Universal primary workpiece material classification suitable for steel, stainless, cast iron, and superalloys
• 16EL insert style in the Snap-Tap series for secure laydown-style seating
• Corner radius of 0.0030 inches for defined thread root geometry

Compatibility

Designed for use with Snap-Tap series toolholders that accept the 16EL laydown threading insert style. Verify toolholder pocket and clamping system compatibility before installation.

Installation Notes

Threading inserts are installed and replaced by machinists or tool crib technicians following machine lockout/tagout procedures before any insert change. Ensure the toolholder pocket is clean and free of chips before seating the insert. Use the appropriate torque wrench and manufacturer-specified screw to clamp the insert without overloading the carbide. Confirm thread direction and insert hand orientation match the intended operation before initiating a cut.
