Seco 00048855 Carbide Cutoff Insert 0.161 in CP600

Product Description

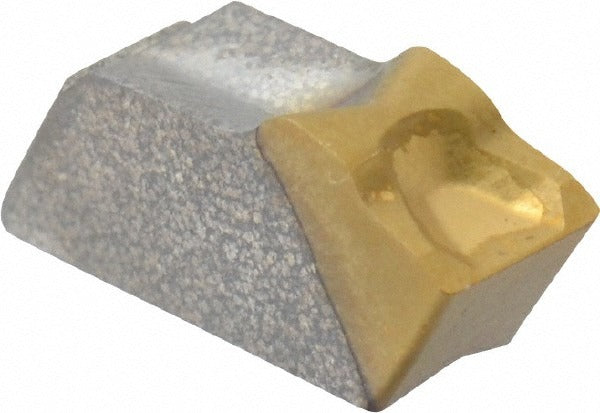

The SECO 00048855 is a solid carbide cutoff insert designed for parting and grooving operations on CNC lathes and turning centers. It carries the CP600 manufacturer grade with a PVD-applied TiAlN/TiN multilayer coating, which supports extended tool life across a broad range of workpiece materials. The insert features a 0.161 inch cutting width, a 0.009 inch corner radius, and a neutral lead angle, making it suitable for straight, symmetrical cutoff passes. It belongs to the Series 150.10 platform and is held in the toolholder by a clamp-style clamping method. Machinists and CNC operators working in production turning environments are the primary users of this insert.

This insert is rated for universal primary workpiece material, classified under material code OD, making it applicable across a wide range of metals commonly encountered in production turning. The neutral hand and zero lead angle suit standard straight cutoff operations where minimal side force is desired. The chipbreaker designation is 16. This is a single-end insert, meaning it is indexed once and then replaced. It is sold individually per package, with a minimum order quantity of 10 units.

Key Features

• CP600 grade solid carbide construction with PVD TiAlN/TiN coating for extended wear resistance
• 0.161 inch cutting width with a width tolerance of 0.003 inch for consistent parting performance
• 0.009 inch corner radius for controlled edge geometry on straight cutoff passes
• Neutral lead angle and neutral hand for symmetrical, straight cutoff application
• Clamp-style insert holding method for secure, repeatable seating in compatible toolholders
• Series 150.10 platform insert sized at insert size code 4, overall length 0.354 inch

Compatibility

Designed as an OEM-style replacement or direct-fit insert for Series 150.10 clamp-style cutoff toolholders. Specific toolholder compatibility should be confirmed against Series 150.10 toolholder documentation before ordering.

Installation Notes

This insert is installed and replaced by machinists or toolroom technicians. Before changing inserts, ensure the machine spindle is stopped and all axis motion is locked out per shop lockout/tagout procedures. Seat the insert fully into the toolholder pocket and verify the clamp is torqued according to the toolholder manufacturer specifications before resuming cutting. Inspect the insert seat and clamp for wear or debris prior to each insert change to maintain positioning accuracy.
