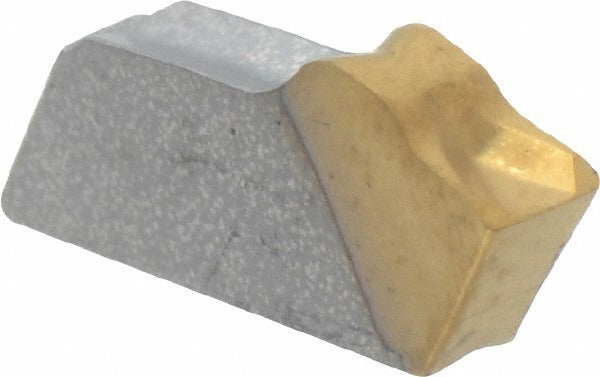

Seco 00048853 Carbide Cutoff Insert CP600 Tialn Tin

Product Description

The SECO 00048853 is a solid carbide cutoff insert engineered for parting and grooving operations on CNC lathes and turning centers. Built to the 150.10 series standard, this insert carries a CP600 manufacturer grade and features a PVD-applied TiAlN and TiN dual coating for extended tool life across a wide range of workpiece materials. The neutral lead angle and neutral hand orientation make it compatible with straight cutoff toolholders without preferential side loading. A 0.007 inch corner radius provides a controlled edge geometry suited to general-purpose parting applications. The insert measures 0.354 inches in overall length and 0.098 inches in overall width.

This insert is intended for cut-off applications across universal or OD workpiece material classifications, covering ferrous and non-ferrous metals in both production and job-shop turning environments. The CP600 grade with PVD coating performs reliably on steel, stainless, and cast materials at moderate to high cutting speeds. It is sized for 2.5 series cutoff toolholders and blades following the 150.10 system. Machinists and CNC operators install this insert as a standard consumable replacement in high-cycle parting operations. The chipbreaker designation is 16. Note that the minimum order quantity for this insert is 10 pieces; individual package quantity is 1.

Key Features

• CP600 grade solid carbide construction for wear resistance in universal cutting applications
• PVD-applied TiAlN and TiN dual coating extends cutting edge life and reduces built-up edge
• Neutral insert hand and neutral lead angle for use in straight cutoff toolholders
• 0.007 inch corner radius provides controlled geometry for clean parting cuts
• 150.10 series, 2.5 insert size code for direct fitment in compatible blades and holders
• Chipbreaker style 16 suited to general parting and grooving chip control

Compatibility

Designed for use in 150.10 series cutoff blades and toolholders accepting a 2.5 insert size code with neutral hand orientation.

Installation Notes

This insert is installed and replaced by machinists or CNC tooling technicians. Power down and lock out the machine spindle before changing inserts. Use the appropriate insert clamp key or torx wrench specified by the toolholder manufacturer to seat the insert securely without overtightening. Inspect the insert pocket for chips or damage before seating a new insert to ensure proper contact and edge repeatability.
