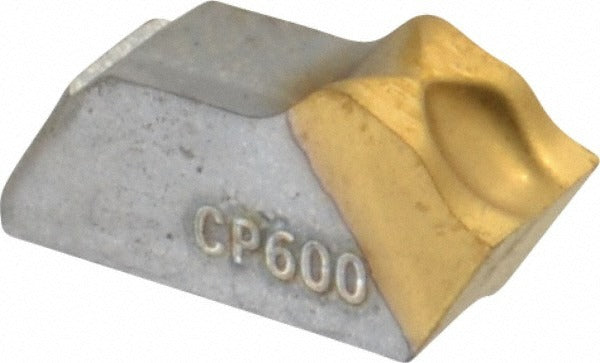

Seco 00048847 Carbide Cutoff Insert 0.161 in CP600

Product Description

The SECO 00048847 is a solid carbide cutoff insert designed for parting and grooving operations on CNC lathes and turning centers. It belongs to the Series 150.10 and carries a CP600 manufacturer grade with a PVD-applied TiAlN and TiN dual coating. The insert features a 0.161 inch cutting width, a neutral lead angle, and a 0.009 inch corner radius. With a chipbreaker designation of 14 and a relief angle of 0 degrees, it is engineered for controlled chip evacuation during cutoff work. Machinists and tool-crib technicians working in production turning environments are the primary installers and users of this insert.

This insert is suited for cutoff and parting applications across a universal range of workpiece materials, classified under material code OD. It is a single-ended insert held in place by a clamp-style toolholder. The Series 150.10 designation identifies the compatible toolholder family for proper seating and clamping. It is appropriate for use in both light and moderate-duty turning operations where dimensional accuracy at the parting line is critical.

Key Features

• Solid carbide construction with CP600 grade for wear resistance in universal material applications
• PVD-applied TiAlN and TiN dual coating for extended tool life and reduced built-up edge
• 0.161 inch cutting width with a width tolerance of 0.003 inches for consistent part-off dimensions
• Neutral hand and neutral lead angle for balanced cutting forces during parting
• 0.009 inch corner radius for controlled edge geometry at the cutoff groove
• Chipbreaker designation 14 for effective chip control in turning operations

Compatibility

Designed for use with Series 150.10 clamp-style toolholders. The MSC and manufacturer cross-reference number for this insert is 150.10-4N-14.

Installation Notes

This insert is installed by a machinist or toolroom technician into a compatible Series 150.10 clamp-style toolholder. Power down and lock out the machine spindle before changing inserts. Inspect the toolholder pocket and clamp for debris or damage before seating the insert. Do not exceed the toolholder manufacturer's recommended depth-of-cut or feed rate for the insert size.
