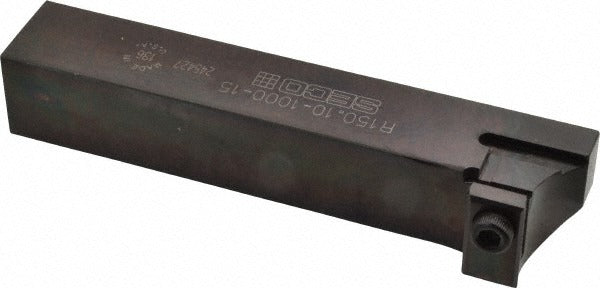

Seco 00048458 Cutoff Blade Tool Block 150.10 Right Hand

Product Description

The SECO 00048458 is an indexable cutoff blade tool block designed for parting operations on CNC lathes and turning centers. Built to Tool Block Style 150.10, it accepts blades and inserts in the 150.10 series, providing a rigid, repeatable mount for cutoff and grooving work. The block features a 1-inch compatible blade height, a 1-inch compatible blade width, and an overall length of 6.031 inches. The shank measures 1 inch in height by 1 inch in width with a shank length of 4.7 inches. Cutting direction is right hand. This toolholder is installed by machinists and toolroom technicians on production turning equipment.

This tool block is suited for right-hand parting and cutoff operations in production and job-shop turning environments. It is compatible with blades in the 150.10-15 series and inserts in the 150.10-12, 150.10-14, and 150.10-16 series, allowing flexibility in insert selection based on material and cut depth requirements. Typical applications include bar stock parting, face grooving, and external grooving on ferrous and non-ferrous workpieces.

Key Features

• Tool Block Style 150.10 for compatibility with 150.10 series blades and inserts
• 1-inch compatible blade height and 1-inch compatible blade width
• Overall length of 6.031 inches with a 4.7-inch shank length
• Right-hand cutting direction for standard lathe orientation
• Indexable insert design allows quick blade and insert changeover without removing the block
• No coolant-through configuration — suitable for external coolant delivery setups

Compatibility

Compatible with blades in the 150.10-15 series. Compatible inserts include 150.10-12, 150.10-14, and 150.10-16 series.

Installation Notes

This tool block is installed by qualified machinists or toolroom technicians on CNC or manual turning equipment. Before mounting or changing inserts, ensure the machine is powered down, the spindle is fully stopped, and the turret is in a safe index position. Use calibrated torque wrenches and manufacturer-specified fasteners when securing the block to the turret or tool post. Verify shank dimensions match the machine tool holder pocket before installation.
