Seco 00046743 Threading Insert 24 Tpi Lh Un Solid Carbide CP500

Product Description

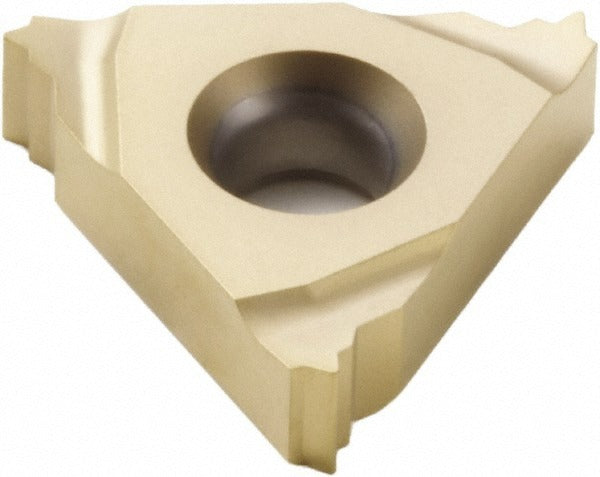

The SECO 00046743 is a laydown threading insert designed for external UN thread cutting operations. Built from solid carbide in the CP500 grade with a micrograin substrate, it carries a PVD-applied TiAlN/TiN coating for extended wear resistance in demanding threading applications. The insert is configured for left-hand external threads at 24 threads per inch with a 60-degree included angle, a 3/8 inch inscribed circle, and a 0.1366 inch thickness. It seats in the Snap Tap insert series and is intended for use by machinists and CNC lathe operators requiring consistent, repeatable thread form on externally threaded workpieces.

This insert is suited for threading operations across a broad range of workpiece materials, including cast iron, non-ferrous alloys, aluminum, steel, and heat-resistant alloys, consistent with the universal material compatibility codes assigned to this grade. It is a left-hand insert and is appropriate for situations where left-hand thread forms are required, such as reverse-threaded fastener applications or specific machine components. The 16EL style and size code 16 determine the compatible toolholder pocket geometry on CNC and manual turning centers.

Key Features

• Solid carbide construction with micrograin substrate for rigidity and edge integrity
• CP500 grade with PVD TiAlN/TiN coating for heat and wear resistance
• 24 TPI left-hand external UN thread form with 60-degree included angle
• 3/8 inch inscribed circle fits standard 16EL-style Snap Tap toolholders
• Universal workpiece material compatibility covers steel, cast iron, non-ferrous, and superalloys
• ISO-standard insert geometry for consistent, verifiable thread profiles

Compatibility

Designed for use in toolholders accepting the 16EL insert style with a size code 16 pocket geometry, as part of the SECO Snap Tap threading system. Workpiece material compatibility codes K, M, N, P, and S are assigned to this insert grade.

Installation Notes
