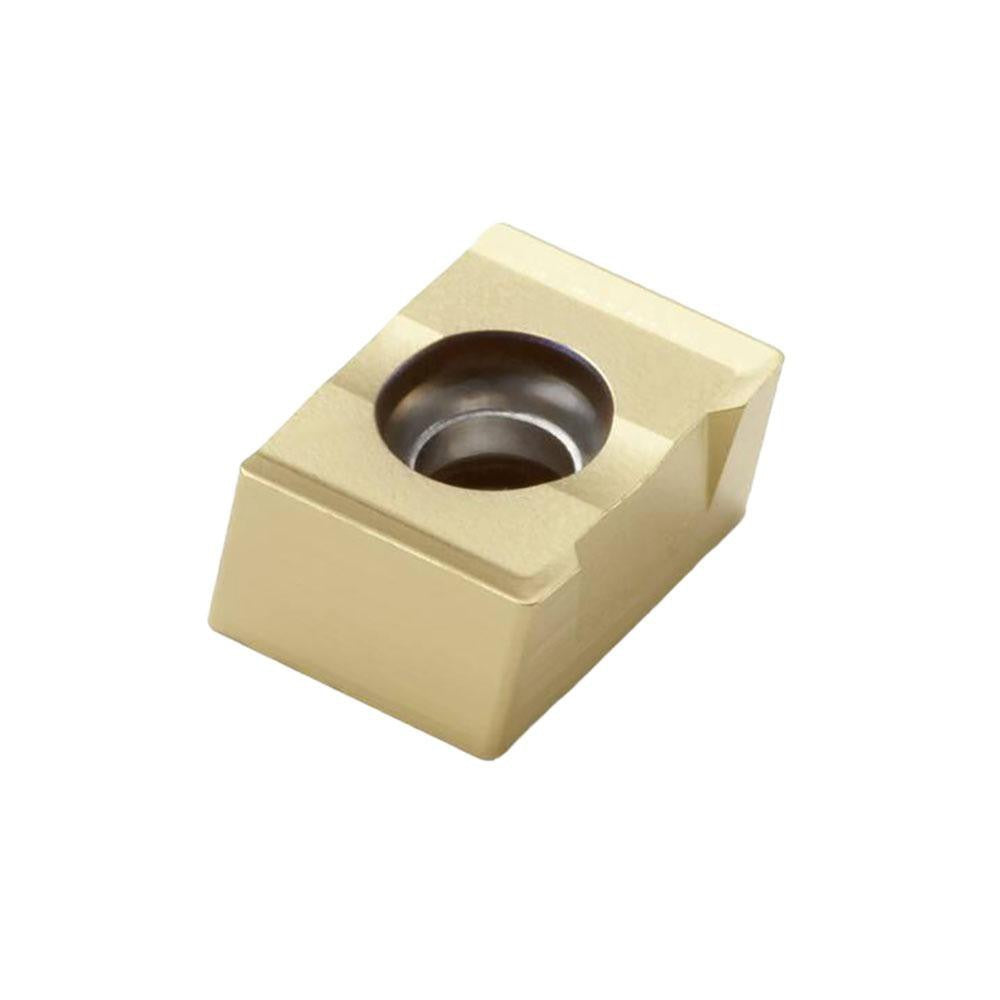

Seco 00042898 Milling Insert Lnkt 080504PPTN-M06 F40M

Product Description

The SECO 00042898 is a solid carbide milling insert carrying the ANSI/ISO designation LNKT 080504PPTN-M06 in manufacturer grade F40M. This double-sided, neutral-hand insert features a rectangular shape with a 90-degree included angle and four usable cutting edges, making it a cost-effective choice for high-production face and shoulder milling. The TiAlN and TiN dual-layer PVD coating improves wear resistance and heat tolerance at the cutting edge. With a T-Land cutting edge style and a negative rake angle of 15 degrees, the insert is engineered for stable, controlled cuts in demanding materials. It is compatible with the R335.18 cutter series and uses screw-style holding. Installed by machinists and tool-and-die professionals in CNC milling environments.

This insert is designed for milling steel, stainless steel, cast iron, non-ferrous metals, superalloys, and titanium. The M06 chip breaker geometry handles medium cutting conditions across a broad range of workpiece materials, making it suited for both roughing and semi-finishing passes. Typical applications include face milling, shoulder milling, and side milling operations on machining centers and CNC mills. The neutral hand orientation provides flexibility in toolpath direction. This insert fits within the LNKT-08 series and is sized per the 080504 insert size code.

Key Features

• Double-sided insert with 4 cutting edges for extended tool life per insert
• TiAlN and TiN PVD coating for heat resistance and wear reduction
• Negative rake with T-Land edge prep for stable cutting in hard and interrupted cuts
• M06 chip breaker suited for medium-duty milling of steel, cast iron, superalloys, and titanium
• Fine grain solid carbide substrate in manufacturer grade F40M
• Compatible with R335.18 cutter series using screw-style insert holding

Compatibility

Designed for use with the R335.18 cutter series. Insert size code 080504 and ANSI/ISO code LNKT 080504PPTN-M06 should be verified against the toolholder pocket specification before installation.

Installation Notes

Installation is performed by a qualified machinist or toolroom technician. Always power down and lock out the machine spindle before seating or replacing inserts. Use the correct torx or hex key to torque the clamping screw to the toolholder manufacturer specification — do not overtighten or undertighten the screw, as either condition can cause insert movement or breakage during a cut. Inspect the pocket seating surface for chips or debris before installing a new insert.
