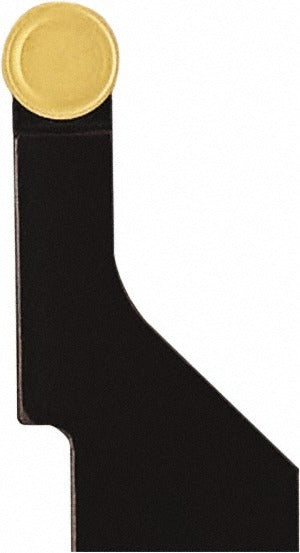

Seco 00041032 Rh Trgo Neutral Rake Indexable Turning Toolholder

Product Description

The SECO 00041032 is a right-hand indexable turning toolholder in the TRGO style, part of the Multi-Directional Turning (MDT) series. It features a neutral rake angle of 0 degrees, a 90-degree lead angle, and a 1 inch x 1 inch square shank with an overall length of 6 inches. The toolholder uses a pin-type insert holding method and is designed to accept RCGS inserts with a 3/16 inch inscribed circle. It is installed by machinists and toolroom technicians on CNC and manual turning centers where consistent insert positioning and multi-material capability are required.

This toolholder is suited for external turning operations across a broad range of workpiece materials, including ferrous metals, non-ferrous metals, high-temperature alloys, stainless steels, and general-purpose materials, as indicated by the universal primary workpiece material designation. The right-hand cutting direction and 90-degree lead angle make it a practical choice for facing and longitudinal turning passes. The head length measures 1.56 inches with a back-of-bar to cutting edge distance of 1.25 inches, supporting consistent tool positioning on the machine.

Key Features

• TRGO style right-hand toolholder with neutral 0-degree rake angle
• Accepts RCGS inserts with a 3/16 inch (0.1875 inch) inscribed circle via pin-type clamping
• 1 inch x 1 inch square shank for secure mounting on standard turning center tool posts
• 90-degree lead angle supports facing and straight longitudinal turning operations
• Universal material compatibility covering steel, cast iron, stainless, non-ferrous, and superalloys
• Part of the Multi-Directional Turning (MDT) series for versatile setup configurations

Compatibility

Designed to accept RCGS inserts with compatible insert size code RCGS1.5 and a 3/16 inch inscribed circle. Suitable for right-hand external turning applications on CNC and manual lathes equipped with a standard 1 inch x 1 inch shank tool post or turret seat.

Installation Notes

Installation and tool changes should be performed by a qualified machinist or toolroom technician with the machine in a full stop condition and all axis motion disabled. Ensure the shank seat and tool post bore are clean and free of chips before seating the holder. Verify insert seating and pin engagement before resuming cuts. Follow the machine tool manufacturer guidelines and applicable shop safety procedures when torquing clamping hardware.
