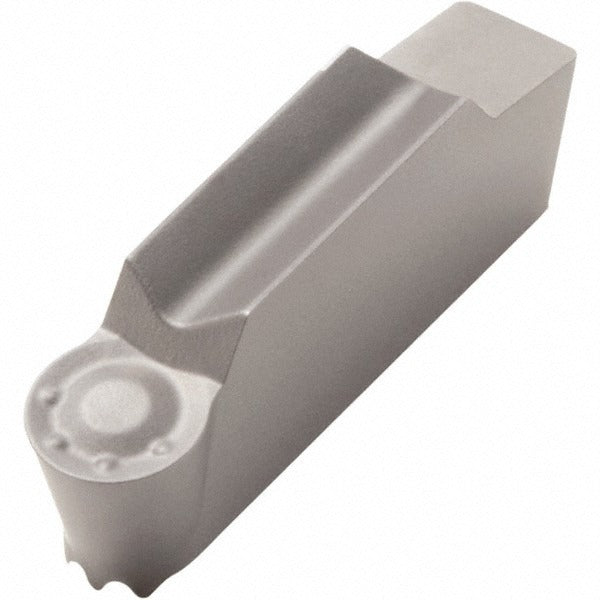

Seco 00034652 Mdt Turning Insert 883 Solid Carbide

Product Description

The SECO 00034652 is a solid carbide, multi-directional turning (MDT) insert designed for precision grooving and turning operations on CNC lathes and turning centers. Built to insert style LCMR and style code LCMR1603M0-0300-MP, it features a 0.118-inch maximum cutting width, a 0.177-inch cutting height, and a 0.059-inch corner radius with a full radius profile. The relief angle is 7 degrees and the chipbreaker designation is MP. The insert is uncoated and delivered in a neutral hand configuration, making it suitable for a range of approach directions. Machinists and tooling specialists install this insert into compatible MDT toolholders.

This insert is applied in single-end MDT tooling setups and is suited for machining workpiece materials classified under ISO material groups H, M, N, and S. Typical applications include finish grooving, turning, and profiling operations where a full-radius insert geometry and controlled chip formation are required. At 0.674 inches in insert length, the 00034652 fits standard MDT pocket configurations used in both production and maintenance machining environments. It is sold individually but must be ordered in multiples of 10 per manufacturer minimum order requirement.

Key Features

• Solid carbide construction, Material Grade C2, Manufacturer Grade 883
• Full radius insert geometry with 0.059-inch corner radius
• MP chipbreaker for controlled chip formation across multiple material groups
• Neutral hand orientation supports flexible approach angles
• Uncoated finish suited for applications where coating is not required or preferred
• Single-end insert design for straightforward pocket seating

Compatibility

Designed for use in SECO MDT series toolholders accepting LCMR1603M0 insert pockets. Compatible workpiece material groups include ISO H, M, N, and S as specified by the manufacturer.

Installation Notes

Insert seating and clamping should be performed by a qualified machinist or tooling technician following the toolholder manufacturer's torque and clamping specifications. Ensure the machine spindle is fully stopped and locked out before changing inserts. Inspect the pocket seat and clamping screw for wear or damage before installing a new insert. Follow applicable shop safety procedures and equipment manufacturer guidelines when handling carbide tooling.
