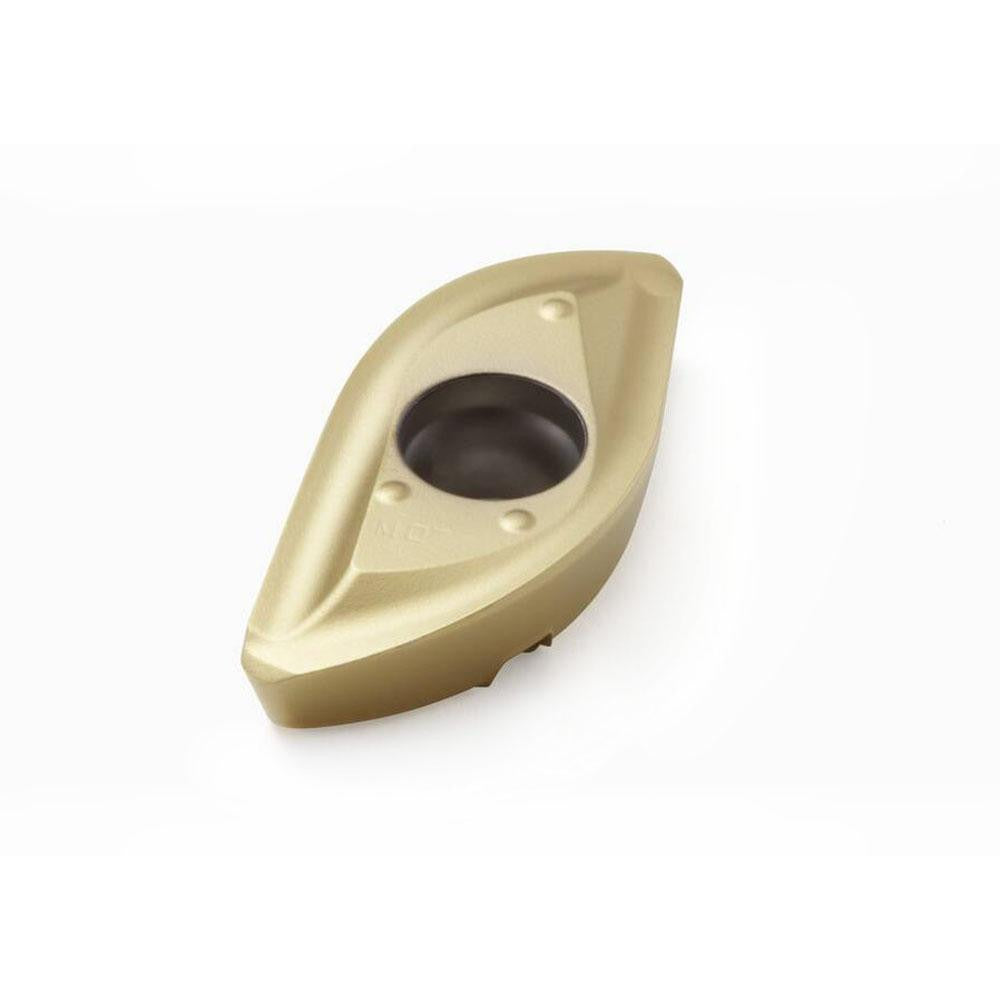

Seco 00030464 Ball Nose Milling Insert F40M 0.500 in

Product Description

The SECO 00030464 is a solid carbide ball nose milling insert designed for high-performance metal removal in CNC milling applications. Manufactured to the 218.20-160ER-M08 standard, this right-hand insert features a 0.500-inch inscribed circle, a 0.252-inch thickness, and a 0.630-inch corner radius. The F40M fine-grain carbide grade is paired with a PVD-applied TiAlN and TiN dual-layer coating, delivering heat and wear resistance suited to aggressive cutting conditions. With two honed cutting edges and a positive rake geometry, the insert promotes clean chip flow and reduced cutting forces. Licensed trades machinists and CNC operators install this insert in compatible indexable ball nose end mill bodies.

This insert is suited for milling steel, stainless steel, cast iron, non-ferrous metals, superalloys, and titanium. It fits into the R218.20-32 and R218.20-01.25 cutter body series. The M08 chip breaker geometry and positive rake angle make it well-matched for medium to semi-finish milling passes. The insert is screw-held and single-sided, with a maximum depth of cut reaching 1.102 inches, making it capable of profiling and contouring passes in both ferrous and exotic workpiece materials.

Key Features

• Ball nose shape with a 0.630-inch corner radius for profiling and contouring cuts
• F40M fine-grain solid carbide grade with PVD-applied TiAlN and TiN coating for extended tool life
• Positive rake angle with honed cutting edge style reduces cutting forces and promotes chip evacuation
• Two right-hand cutting edges per insert on a single-sided body
• M08 chip breaker optimized for steel, cast iron, superalloys, and titanium workpieces
• Screw-held mounting for secure seating in compatible indexable cutter bodies

Compatibility

Compatible with the R218.20-32 and R218.20-01.25 cutter body series. ANSI and ISO code: 218.20-160ER-M08. Conforms to ISO standards.

Installation Notes

Indexable insert installation is performed by qualified machinists or CNC tooling technicians. Power down and lock out the machine spindle before seating or removing any insert. Use the appropriate Torx or hex key specified by the cutter body manufacturer to seat the clamping screw — do not overtighten or use impact tools on insert screws. Inspect the insert pocket for debris or damage before each insert change to ensure proper seating and runout control.
