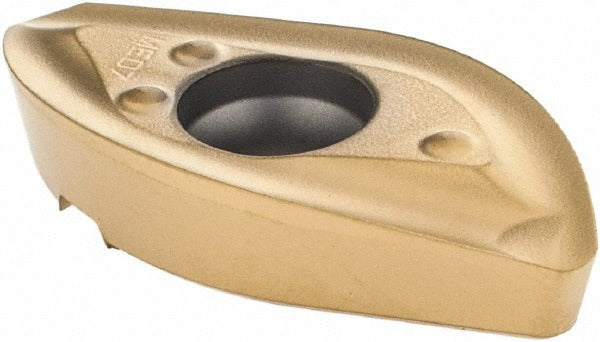

Seco 00030448 Ball Nose Milling Insert F40M Solid Carbide

Product Description

The SECO 00030448 is a solid carbide ball nose milling insert designed for use in rotating milling cutters on CNC machining centers and milling machines. Manufactured to insert style 218.20-125ER-ME07 with an F40M fine-grain carbide grade, this insert carries a dual-layer TiAlN and TiN PVD coating for extended tool life across demanding applications. It features two cutting edges, a positive rake angle of 11 degrees, and a honed cutting edge style that reduces micro-chipping on entry. The chip breaker designation is ME07. Intended for use by machinists and tooling technicians in production and job-shop environments.

This insert is suited for milling steel, stainless steel, cast iron, non-ferrous metals, superalloys, and titanium. Primary workpiece material codes are P, K, and S, with secondary coverage for K and N material groups per ISO classification. The positive rake geometry and PVD coating make it effective for both roughing and semi-finishing passes in materials that generate high cutting temperatures. It is a single-sided, right-hand insert held in place by a screw-type clamping method.

Key Features

• Ball nose insert shape with 0.4921 inch corner radius for profiling and contouring operations
• F40M fine-grain solid carbide substrate with TiAlN and TiN PVD dual-layer coating
• Two cutting edges with honed edge style and positive 11-degree rake angle
• Maximum depth of cut: 0.8660 inches
• ME07 chip breaker geometry compatible with steel, cast iron, superalloys, and titanium
• Screw-mount insert holding method for secure seating in compatible cutter bodies

Compatibility

Designed for use with SECO cutter series R218.20-25 and R218.20-01.00. Conforms to ANSI and ISO code 218.20-125ER-ME07. Verify cutter body seat geometry and insert pocket size before installation.

Installation Notes

Installation is performed by tooling technicians or machinists using a torx or hex key appropriate to the cutter body screw specification. Power down and lock out the spindle before changing inserts. Inspect the insert pocket and seating surface for chips or debris before placing the new insert, as contaminated seats cause premature edge failure. Follow the cutter manufacturer's clamping torque guidance for the screw-type holding method.
