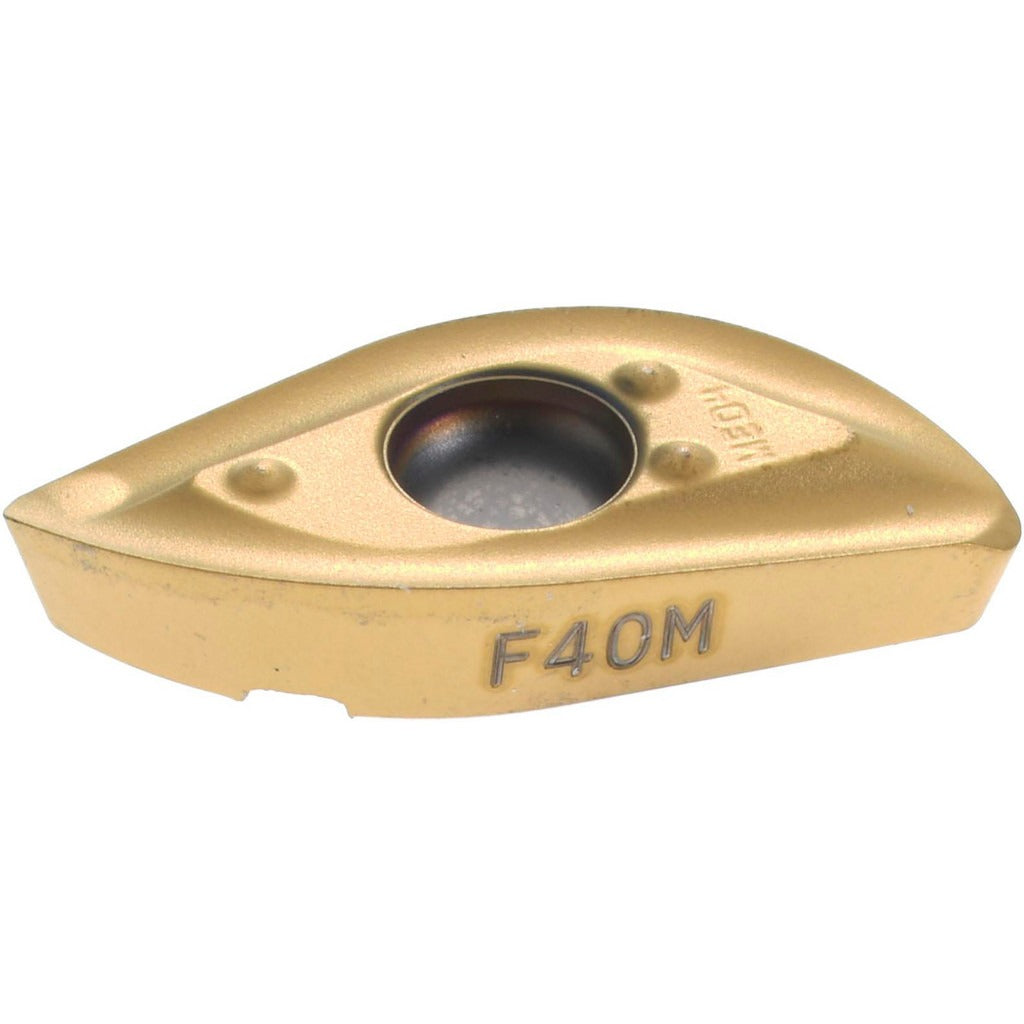

Seco 00030428 Ball Nose Milling Insert F40M Solid Carbide

Product Description

The SECO 00030428 is a solid carbide ball nose milling insert in the 218.20-080ER-ME04 series, designed for high-performance indexable milling operations. Manufactured from fine-grain solid carbide and coated with a dual-layer TiAlN and TiN physical vapor deposition (PVD) coating, this insert delivers wear resistance and thermal stability under demanding cutting conditions. It features a positive rake angle of 5 degrees, an 11-degree relief angle, and a honed cutting edge for clean chip formation. With 2 cutting edges and a right-hand orientation, it is suited for productive material removal in steel, cast iron, superalloys, and titanium applications. Licensed machinists and CNC milling specialists are the typical installers.

This insert is used in indexable ball nose end mill applications across aerospace, general machining, and die-and-mold work. It handles primary workpiece materials including steel, cast iron, superalloys, and titanium (ISO material codes P, K, S), with secondary suitability for cast iron and non-ferrous metals (ISO codes K, N). The ME04 chip breaker geometry supports versatile depth-of-cut profiles, with a maximum depth of cut of 0.5510 inches. It is screw-held and fits within the R218.20 and R218.24 cutter series as noted below under compatibility. The insert is ISO-compliant and carries ANSI code 218.20-080ER-ME04.

Key Features

• Solid carbide construction with fine-grain material grade for edge stability
• Dual PVD coating: TiAlN and TiN for heat resistance and extended tool life
• Ball nose insert shape with 0.3150-inch corner radius for contour milling
• Positive 5-degree rake angle and honed cutting edge for clean chip formation
• ME04 chip breaker for effective chip control across multiple workpiece materials
• Right-hand, single-sided insert with screw holding method for secure clamping

Compatibility

Compatible with the following cutter series as specified by the manufacturer: R218.20-16, R218.20-0.625, and R218.24-R080.

Installation Notes

Installation is performed by a qualified CNC machinist or toolroom technician. The machine spindle must be fully stopped and locked out before indexing or replacing inserts. Use the appropriate torx or hex key to seat the clamping screw to the tool body specification; do not over-torque. Verify insert seating and clamping before resuming cutting operations.
