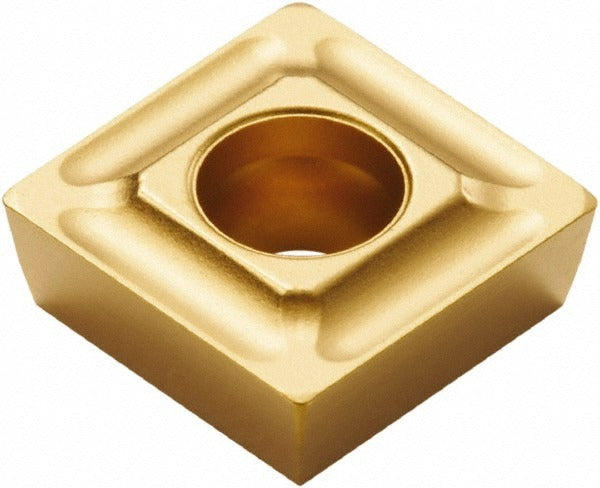

Seco 00029220 Spmx 060204-75 F40M Carbide Milling Insert

Product Description

The SECO 00029220 is a solid carbide milling insert in the SPMX-06 series, cataloged under part number SPMX060204-75. It features a square shape with a 90-degree included angle, four cutting edges, and a neutral hand orientation. The insert carries a TiAlN and TiN dual coating applied via PVD process, paired with an F40M fine-grain carbide grade. A positive 20-degree rake angle and T-Land cutting edge style make this insert suited for productive milling operations on a range of metallic workpiece materials. It is installed by machinists and tooling technicians using a screw-holding method.

This insert is designed for milling applications involving steel, stainless steel, cast iron, non-ferrous metals, superalloys, and titanium. It is rated for a maximum depth of cut of 0.2500 inches and carries a 0.0157-inch corner radius for controlled edge engagement. The insert fits SECO cutter series R215.49-3 and R335.16-3, making it applicable in face milling and shoulder milling operations in both production shop and job shop environments. The chip breaker designation is 75.

Key Features

• Solid carbide construction with F40M fine-grain grade for wear resistance in demanding cuts
• TiAlN and TiN PVD dual coating for heat resistance and extended tool life
• Four cutting edges per insert with neutral hand orientation for versatile use
• Positive 20-degree rake angle with T-Land cutting edge style reduces cutting forces
• 0.0157-inch corner radius and 0.2500-inch maximum depth of cut
• Compatible with primary workpiece materials: steel, cast iron, superalloys, and titanium

Compatibility

Compatible with SECO cutter series R215.49-3 and R335.16-3. ANSI and ISO code SPMX060204-75. Insert size code 060204, series SPMX-06. Minimum order quantity is 10 pieces; each package contains 1 insert.

Installation Notes

This insert is secured via screw-holding method into compatible SECO milling cutter bodies. Ensure the cutter body is fully de-energized and the spindle is locked before changing inserts. Use the correct torx or hex key as specified by the cutter body manufacturer for the clamping screw. Inspect the insert pocket seating surface for chips or debris before seating the new insert.
