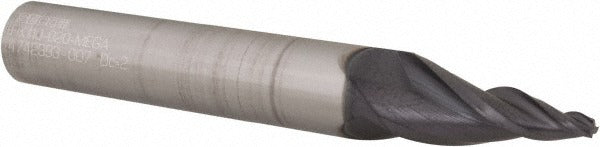

Seco 00029110 Tapered End Mill 2mm 11 Deg 3 Flute Carbide

Product Description

The SECO 00029110 is a solid carbide tapered end mill designed for precision milling of contoured surfaces, mold cavities, and complex 3D profiles. It features an 11-degree taper angle per side and a 2.00 mm small end diameter, making it well suited for tight-tolerance work in difficult-to-reach areas. The three-flute, right-hand spiral design with a 30-degree helix angle promotes efficient chip evacuation while maintaining surface finish quality. The cutting edges are MEGA coated for extended tool life across a broad range of workpiece materials. Licensed machinists and CNC programmers specify this tool for applications demanding consistent geometry and reliable dimensional accuracy.

This tapered end mill is intended for use on CNC machining centers and multi-axis mills where tapered wall features, draft angles, and fine detail work are required. The 20.00 mm length of cut and 10.00 mm shank diameter provide reach into moderate-depth pockets without sacrificing rigidity. Primary workpiece material codes include K, M, N, P, and S, covering cast iron, stainless steel, non-ferrous materials, steel, and heat-resistant superalloys. Secondary material code is N. It is centercutting, allowing plunge entry where tool paths require it.

Key Features

• 11-degree taper angle per side for accurate draft and contour milling
• 2.00 mm small end diameter with a tolerance of +0.1/0 mm for precise fitment in fine detail work
• MEGA coating applied over solid carbide substrate for wear resistance across multiple material groups
• 3-flute right-hand spiral with 30-degree helix for balanced chip evacuation and surface finish
• Centercutting capability supports direct plunge entry without pre-drilled pilot holes
• h5 shank diameter tolerance for consistent, repeatable seating in standard collet chucks

Compatibility

Belongs to the SECO HK series of tapered end mills. Compatible with standard collet chucks and tool holders accepting a 10.00 mm shank diameter with h5 tolerance. Suited for workpiece materials classified under codes K, M, N, P, and S per SECO material group designations.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Ensure the machine spindle is fully stopped and locked out before inserting or removing the tool from the holder. Verify collet size and holding torque specifications match the 10.00 mm shank diameter before running. Coolant-through is not supported on this tool; use external coolant or air blast as appropriate for the workpiece material.
