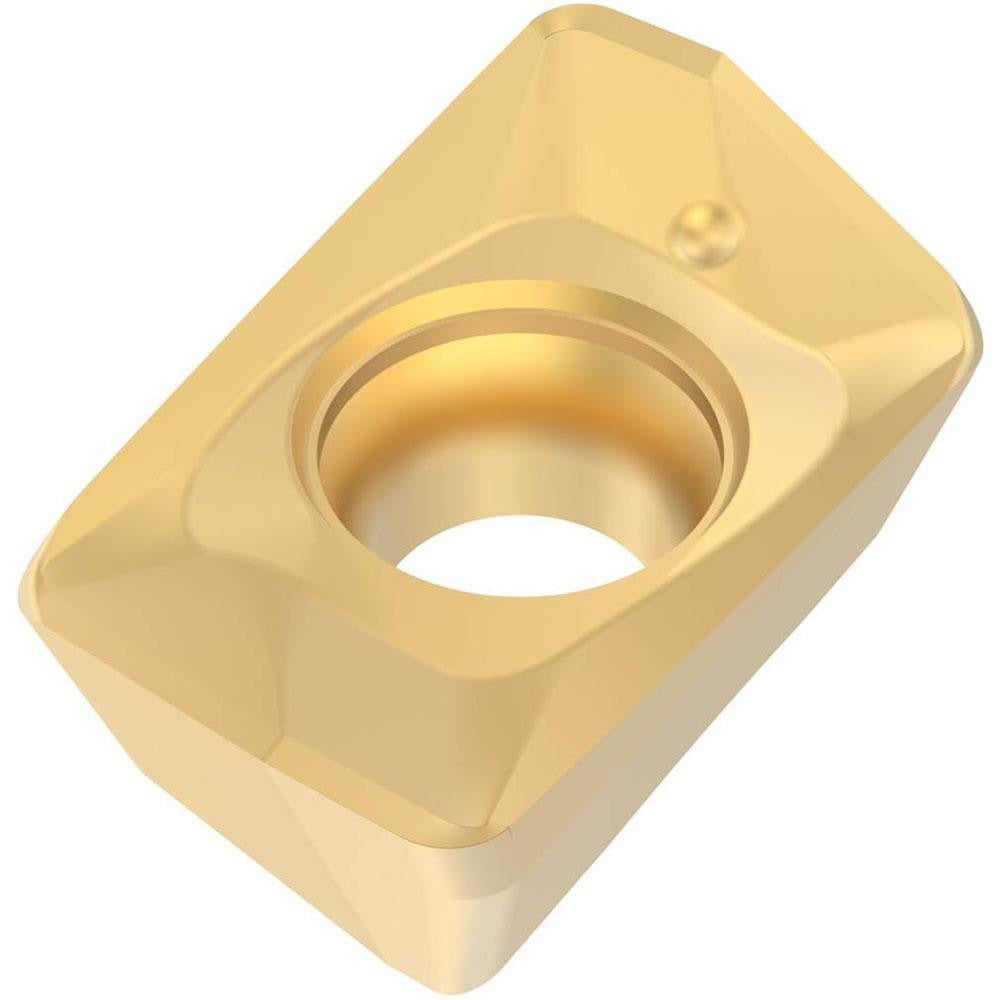

Seco 00026497 Milling Insert XOMX060202R-M05 F40M Carbide

Product Description

The SECO 00026497 is a solid carbide milling insert carrying the ANSI and ISO designation XOMX060202R-M05 in manufacturer grade F40M. This single-sided, right-hand parallelogram insert features a PVD-applied TiAlN and TiN dual coating over a fine-grain carbide substrate. It measures 0.2165 inches in length, 0.1614 inches in inscribed circle diameter, and 0.0965 inches thick, with a 1/128-inch corner radius and a 0.0748-inch hole diameter for screw-style clamping. The positive rake geometry at 20.2 degrees and honed cutting edge style reduce cutting forces and improve surface finish. Two cutting edges are available per insert. Machinists and tooling specialists working in CNC milling applications install this insert type.

This insert is designed for milling operations on steel, stainless steel, cast iron, non-ferrous metals, superalloys, and titanium, aligning with ISO material codes P, K, S, and N. It is compatible with the SECO R217.69-06 cutter series and the XOMX-06 insert series. Typical applications include shoulder milling, contouring, and general-purpose face milling on machining centers and CNC mills where a small, high-performance insert with reliable chip control is required. The M05 chip breaker geometry supports a broad range of depths and feed rates across these material groups.

Key Features

• PVD-coated TiAlN and TiN over fine-grain solid carbide substrate for wear resistance and thermal stability
• Positive rake angle of 20.2 degrees with honed cutting edge reduces cutting forces
• Right-hand parallelogram shape with 90-degree included angle for shoulder milling applications
• Maximum depth of cut and effective cutting edge length of 0.2165 inches
• M05 chip breaker provides versatile performance across steel, cast iron, and superalloy workpieces
• Screw-held mounting for secure, repeatable insert indexing

Compatibility

Designed for use with the SECO R217.69-06 cutter series and XOMX-06 insert series toolholders. ANSI and ISO code XOMX060202R-M05 confirms direct fitment to holders specifying that insert designation.

Installation Notes

Insert installation and indexing should be performed by a qualified machinist or tooling technician with the spindle fully stopped and the machine in a locked-out, tagged-out state per applicable shop safety procedures. Use the correct torx or hex key to torque the clamping screw to the toolholder manufacturer specifications for the R217.69-06 body. Inspect the insert pocket seat and screw thread for debris or damage before seating a new insert. Handle carbide inserts with care to avoid chipping the cutting edges prior to use.
