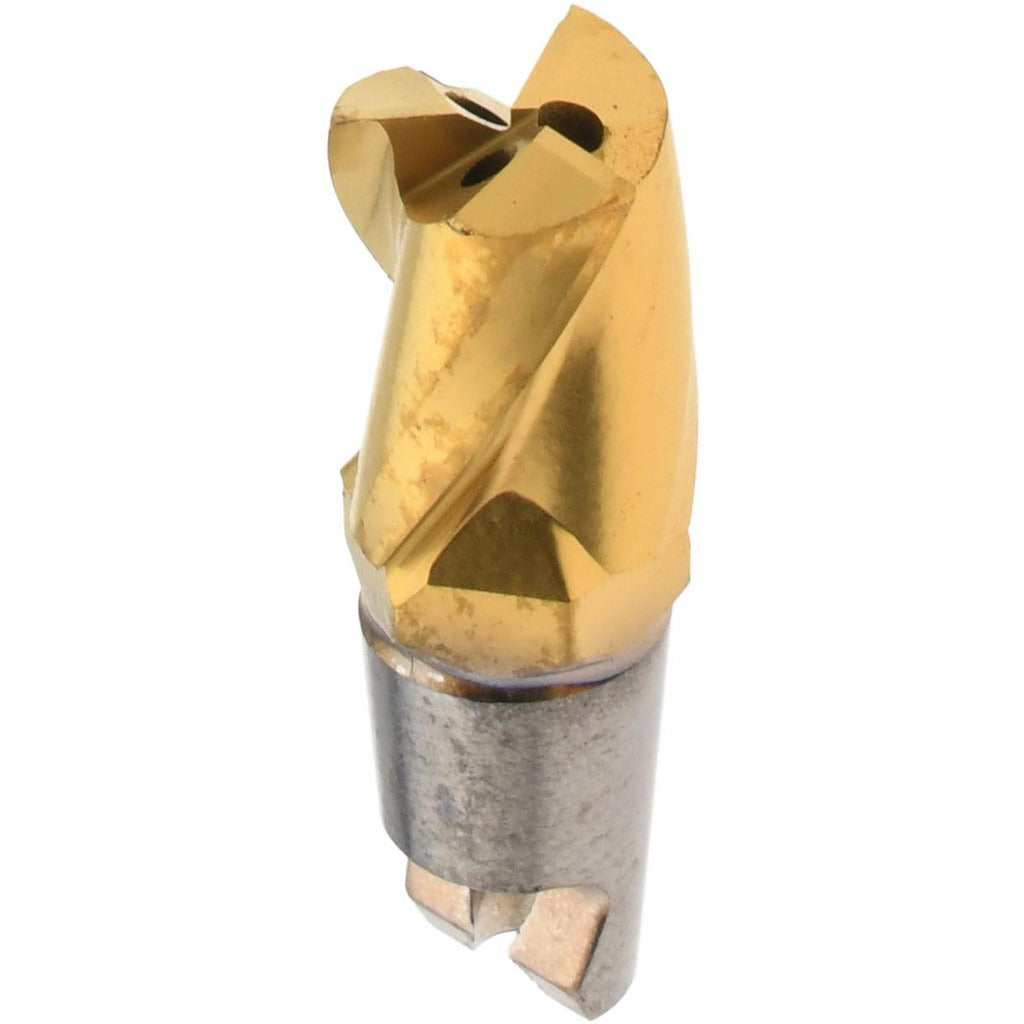

Seco 00023713 Milling Tip 0.228 in Carbide 3 Flute F40M

Product Description

The SECO 00023713 is a keyway replaceable milling tip designed for slotting operations in demanding machining environments. Part of the Minimaster MM06 series, this carbide tip features a 0.228-inch cutting diameter, a maximum depth of cut of 0.295 inches (7.5 mm), and a 3-flute configuration for efficient chip evacuation. The F40M grade combined with a TiAlN/TiN PVD coating delivers wear resistance across a broad range of workpiece materials. It is installed by machinists and CNC tooling technicians in production and job shop settings where precise slot profiles are required.

This tip is suited for slotting and keyway milling in both light and heavy-duty applications. Primary workpiece materials include steel, stainless steel, non-ferrous metals, superalloys and titanium, and hard materials, covering ISO material codes P, M, N, S, and H. The right-hand cut geometry, 30-degree helix angle, and M02 chipbreaker make this tip effective for finishing and semi-finishing passes. Coolant-through capability supports extended tool life in high-heat cutting conditions. Material grades P10 through P50, N10 through N20, M10 through M40, and S10 through S20 are within the rated application range.

Key Features

• 0.228-inch cutting diameter with a 0.295-inch maximum depth of cut
• 3-flute carbide construction with M02 chipbreaker geometry
• TiAlN and TiN PVD coating for heat and wear resistance
• Coolant-through design for temperature management in high-feed applications
• 30-degree helix angle and right-hand cut for smooth chip flow
• 0.008-inch corner radius for controlled edge engagement

Compatibility

Designed for use with Minimaster MM06 series toolholders. Insert size designation is 0.228-R008A30. Confirm holder compatibility with MM06 series specifications before ordering. Minimum order quantity is 2 pieces; package quantity is 1.

Installation Notes

Installation is performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine spindle before changing or inspecting milling tips. Seat the tip fully and torque the retention screw per the toolholder manufacturer specification using the appropriate Torx or hex key. Verify runout after installation before resuming production cuts.
