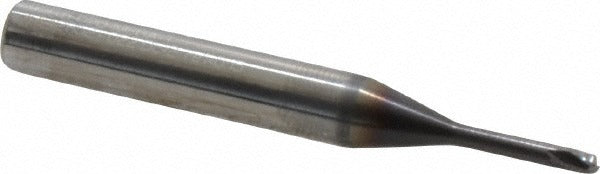

Seco 00023316 Corner Radius End Mill 2mm 2 Flute Carbide

Product Description

The SECO 00023316 is a solid carbide corner radius end mill designed for precision milling in demanding material applications. It features a 2 mm cutting diameter, a 0.15 mm corner radius, and a 2.2 mm length of cut with two right-hand spiral flutes. The tool is finished with SECO's MEGA-T coating, which improves wear resistance and heat dissipation during high-speed cuts. With a 6 mm straight-cylindrical shank and a 50 mm overall length, it is sized for use in CNC machining centers and high-precision milling fixtures. This end mill is center-cutting and single-end, making it suitable for plunging and profiling operations.

This end mill is engineered for milling a broad range of workpiece materials, including hardened steels, stainless and heat-resistant alloys, non-ferrous metals, and titanium-based alloys, as indicated by primary workpiece material codes H, M, N, P, and S. The extended-reach neck design, with a 1.90 mm neck diameter and 12 mm reach length, allows access to deep features and tight pockets without interference from the shank. It is well suited for finish profiling, slotting, and contour work in aerospace, die-and-mold, and precision component manufacturing environments.

Key Features

• Solid carbide construction for rigidity and thermal stability at high feed rates
• MEGA-T coating for improved wear resistance across multiple workpiece material groups
• 0.15 mm corner radius with a tolerance of plus 0.02 mm to minus 0.02 mm for consistent edge geometry
• Extended-reach neck at 1.90 mm diameter and 12 mm reach for deep-pocket access
• Center-cutting design supports both ramp and direct plunge entry
• Right-hand cut and right-hand flute direction with medium helix for balanced chip evacuation
• Maximum TIR of 0.01 mm for tight runout tolerance in precision setups

Compatibility

Designed for use in CNC milling applications across workpiece material groups H, M, N, P, and S, as defined by SECO series JM920 tooling parameters. Compatible with any machine spindle accepting a 6 mm straight-cylindrical shank.

Installation Notes

Installation should be performed by a qualified CNC machinist or tooling technician. The tool must be secured in a compatible collet or end mill holder rated for the 6 mm shank diameter, and runout should be verified at the spindle before beginning a cut. Ensure the machine spindle is fully stopped and the control is in an estop or tool-change state before inserting or removing the end mill. Do not exceed the tool's rated length of cut of 2.2 mm axially without consulting the manufacturer's feed and speed recommendations.
