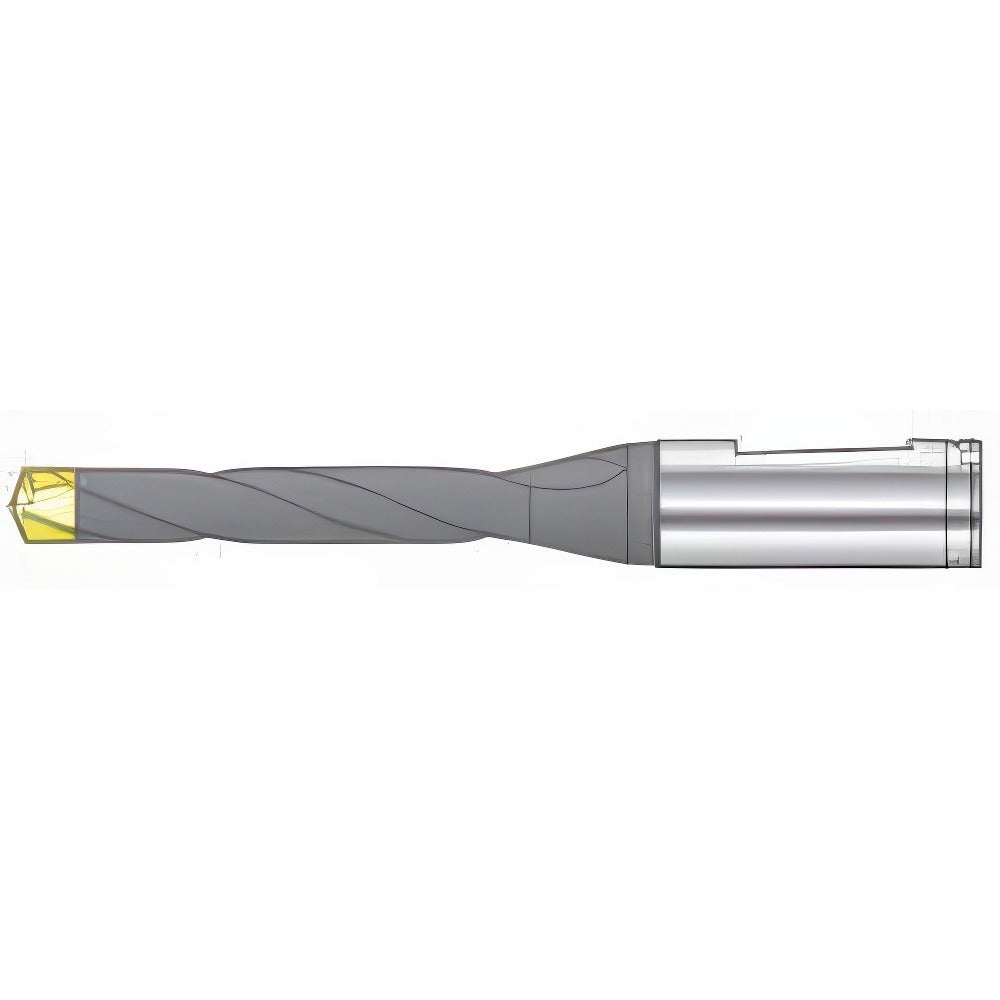

Seco 00022932 Carbide Replaceable Tip Drill 17.07mm

Product Description

The SECO 00022932 is a carbide replaceable tip drill designed for precision hole-making in demanding metalworking applications. Part of the SD100 series, this drill features a 17.07mm cutting diameter and a 140-degree included point angle optimized for stainless steel machining. The tip is manufactured from solid carbide and coated with TiAlN via a PVD process, delivering heat resistance and extended tool life in high-temperature cutting conditions. Through-coolant capability directs cutting fluid directly to the cutting edge, reducing heat buildup and improving chip evacuation. The M geometry designation suits it for use on stainless steel and other ISO M material group workpieces. This replaceable tip design is installed and serviced by machinists and CNC operators in production and job-shop environments.

The 00022932 is suited for drilling stainless steel and ISO M group materials in CNC machining centers and turning centers equipped with through-spindle coolant. The replaceable tip format reduces tooling cost compared to solid carbide drills by allowing tip exchange without discarding the drill body. At 13.3mm in height and weighing 0.04 pounds, the tip is compact and compatible with the SD100 series drill body system. Typical applications include precision drilling in aerospace, food processing, and general industrial manufacturing where stainless steel is a common workpiece material.

Key Features

• Solid carbide tip construction for rigidity and wear resistance in hard materials
• TiAlN coating applied via PVD process for elevated heat resistance and longer tool life
• 140-degree point angle reduces thrust force and improves centering on stainless steel
• Through-coolant design channels fluid directly to the cutting zone for chip evacuation
• M insert geometry optimized for ISO M group workpiece materials including stainless steel
• Replaceable tip format lowers cost-per-hole compared to full solid carbide drills

Compatibility

Designed as a replaceable tip for use with SECO SD100 series drill bodies. Verify SD100 body size compatibility with the 17.07mm tip diameter before ordering.

Installation Notes

Replaceable tip installation and removal should be performed by a qualified machinist following the tool manufacturer's torque and seating procedures for the SD100 drill body. Ensure the machine spindle is fully stopped and locked out before changing tips. Through-coolant connections should be verified and free of obstruction before resuming operation. Inspect the drill body seating surface for wear or damage each time the tip is replaced.
