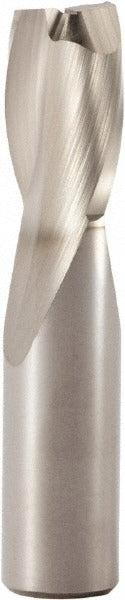

Seco 00022092 Corner Radius End Mill 12mm 2 Flute Carbide

Product Description

The SECO 00022092 is a solid carbide corner radius end mill designed for material removal in non-ferrous metal applications. It features a 12 mm cutting diameter, a 16 mm length of cut, and a 0.1 mm corner radius that reduces edge chipping and extends tool life at the cutting edge. The two-flute, right-hand spiral geometry with a medium helix angle promotes efficient chip evacuation. A HEMI coating improves wear resistance and surface performance. This end mill is single-end, centercutting, and belongs to SECO's JH40 series. It is installed and used by machinists and toolroom professionals on CNC milling machines and manual mills.

This end mill is suited for roughing operations in non-ferrous metals such as aluminum, copper, and brass alloys. The straight-cylindrical shank measures 12 mm in diameter for direct collet or end mill holder mounting. With an overall length of 65 mm and a standard length type, it fits most common toolholding systems used in production and job-shop environments. The JH40 series is engineered specifically for non-ferrous workpiece materials where chip control and surface finish at corner radii are critical to part quality.

Key Features

• 12 mm cutting diameter with a 0.1 mm corner radius for edge protection and reduced chipping
• 2-flute right-hand spiral design promotes chip evacuation in non-ferrous materials
• HEMI coating enhances wear resistance for extended tool life
• Centercutting geometry allows plunge entry into the workpiece
• Solid carbide construction provides rigidity and dimensional stability
• JH40 series, optimized for roughing in non-ferrous metal applications

Compatibility

Designed for use in non-ferrous metal applications as part of the SECO JH40 series. Compatible with standard 12 mm straight-bore collet chucks and end mill holders used on CNC and manual milling machines.

Installation Notes

Installation is performed by machinists using a compatible collet chuck or end mill holder sized for a 12 mm shank. Ensure the machine spindle is fully stopped and locked out before mounting or removing the tool. Follow machine tool manufacturer torque specifications for the toolholder being used. Inspect the cutting edges and coating for wear or damage before each use.
