Seco 00019751 Anvil Indexable Toolholder 0.375 Inch

Product Description

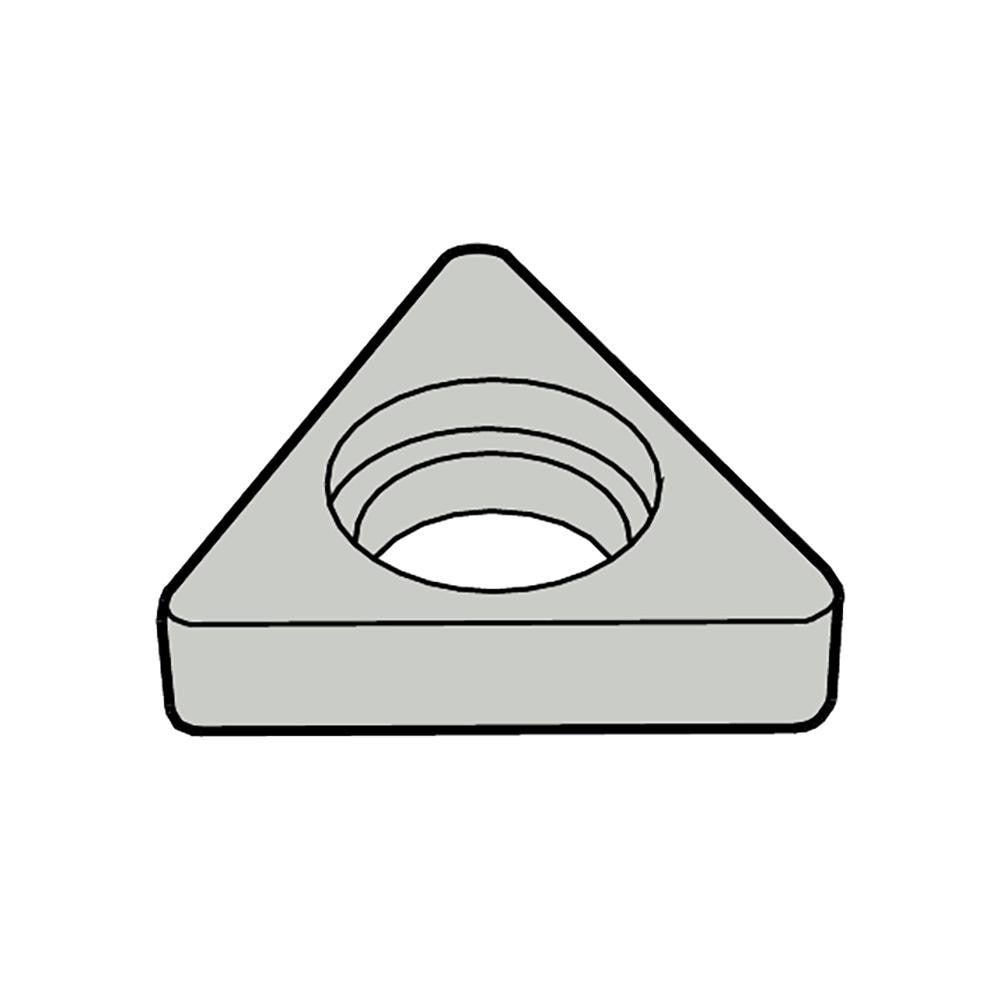

The SECO 00019751 is a replacement anvil designed for indexable toolholders used in metal-cutting operations. The anvil seats beneath the cutting insert, providing a stable support surface that protects the toolholder pocket from impact and wear during turning, boring, or facing operations. It is sized for a 0.375-inch insert inscribed circle, corresponding to toolholder insert size code 3, and is compatible with the SC-205 anvil screw. This component is a precision-fit consumable that machinists and toolroom technicians replace as part of routine toolholder maintenance.

This anvil is suited for use in CNC turning centers, manual lathes, and boring setups where indexable inserts are used in SECO toolholders requiring a size-3 insert seat. It is a direct service replacement intended to restore toolholder performance when the existing anvil shows wear, cracking, or deformation from interrupted cuts or heavy feeds. The part ships individually and can be ordered in single-unit quantities.

Key Features

• Sized for 0.375-inch insert inscribed circle, insert size code 3
• Compatible with SC-205 anvil screw for secure retention
• Protects the toolholder pocket from insert-load damage
• Sold individually, minimum order quantity of 1
• Lightweight at 0.01 pounds for easy handling and stocking

Compatibility

Designed for SECO indexable toolholders requiring a size-3 insert seat with a 0.375-inch inscribed circle and SC-205 anvil screw compatibility. Confirm toolholder insert size code and screw specification before ordering.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians during planned toolholder maintenance. Power down and lock out the machine before accessing the toolholder. Remove the clamping screw and worn anvil, seat the replacement anvil fully in the pocket, and secure with the appropriate anvil screw torqued per the toolholder manufacturer's guidelines. Inspect the insert pocket for damage before returning the holder to service.
