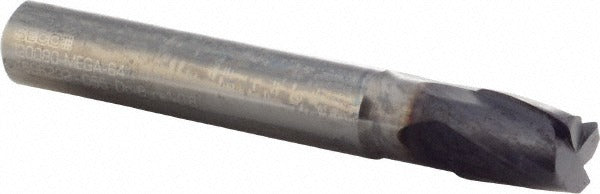

Seco 00019481 Corner Radius End Mill 8mm 4 Flute Carbide

Product Description

The SECO 00019481 is a solid carbide corner radius end mill designed for high-performance material removal in hard material applications. The tool features an 8 mm cutting diameter with a 0.8 mm corner radius, 4 spiral flutes with a medium helix, and a 10 mm length of cut. It carries a MEGA-64 coating suited for extended tool life in demanding cutting conditions. The 60 mm overall length and straight-cylindrical 8 mm shank make it compatible with standard ER and hydraulic toolholders. This end mill is classified as a short-length, extended-reach design in the JH120 series. Licensed machinists and CNC tool setup technicians are the primary users.

This end mill is intended for roughing operations in hard materials, including hardened steels and similar workpieces where edge toughness and thermal resistance are priorities. The extended reach geometry with an 18 mm reach length and 7.40 mm neck diameter allows access to features requiring clearance beyond standard stub-length tools. The right-hand cutting direction and right-hand flute direction are consistent with conventional CNC milling setups. It is packaged as a single-end tool and sold individually.

Key Features

• Solid carbide construction for rigidity and wear resistance in hard material cutting
• MEGA-64 coating provides thermal and abrasion resistance at elevated cutting speeds
• 0.8 mm corner radius reduces stress concentration and extends tool life on corners
• Extended-reach design with 18 mm reach length and 7.40 mm neck diameter for cavity and feature access
• 4-flute spiral geometry optimized for roughing in hard materials
• Low TIR maximum of 0.01 mm supports precision runout control

Compatibility

Designed as an OEM-style replacement and standard fitment for CNC machining centers using straight-cylindrical shank toolholders sized for 8 mm shank diameter tooling in the JH120 series.

Installation Notes

Installation is performed by a machinist or CNC setup technician. The machine spindle must be fully stopped and the tool changer disabled before changing tooling. Confirm proper shank seating depth in the holder to maintain the specified reach and TIR tolerances. Follow the toolholder manufacturer torque and clamping procedures for the specific holder type being used.
