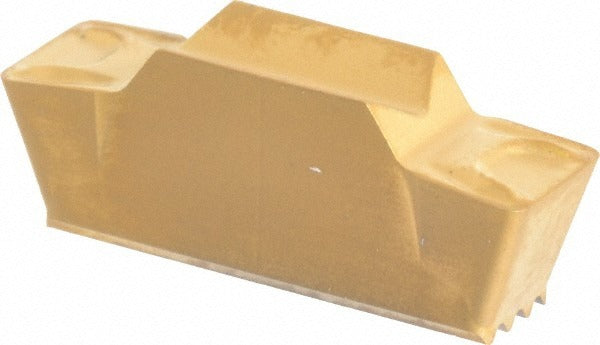

Seco 00018338 Turning Insert CP500 Solid Carbide LCMF160505

Product Description

The SECO 00018338 is a solid carbide multi-directional turning insert in the MDT series, designed for high-performance grooving and turning operations on CNC lathes and turning centers. It features a micrograin carbide substrate with a PVD-applied TiAlN/TiN coating under the CP500 manufacturer grade, delivering wear resistance and thermal stability across a broad range of workpiece materials. The insert measures 0.187 inches maximum cutting width, 0.177 inches cutting height, and 0.630 inches insert length, with a 0.020 inches corner radius. The neutral hand orientation and double-end design maximize insert utilization per unit.

The 00018338 is suited for multi-directional turning, profiling, and grooving applications in both roughing and finishing passes. It is rated for use on workpiece material codes H, K, M, N, P, and S, covering hardened materials, cast iron, stainless steel, non-ferrous alloys, steel, and heat-resistant superalloys. This insert is typically installed by machinists and CNC operators in production turning environments, and it follows the LCMF insert style with the style designation LCMF160505-A187-FT.

Key Features

• CP500 manufacturer grade with micrograin solid carbide substrate for extended tool life
• PVD-applied TiAlN/TiN coating for thermal and abrasion resistance
• Double-end design provides two usable cutting edges per insert
• Neutral hand orientation for flexible toolholder compatibility
• FT chipbreaker geometry for controlled chip evacuation during multi-directional cuts
• 7-degree relief angle supports positive cutting action and reduced cutting forces

Compatibility

Designed for use in LCMF-style toolholders within the MDT series. Compatible with workpiece material codes H, K, M, N, P, and S as specified by the manufacturer. Confirm toolholder pocket dimensions and insert size code LCMF160505 before installation.

Installation Notes

Installation is performed by a qualified machinist or CNC operator. Power down the machine and confirm the spindle is fully stopped before changing inserts. Secure the insert in the toolholder pocket using the appropriate torque tool per the toolholder manufacturer specification. Verify seating and clamping before resuming cutting operations.
