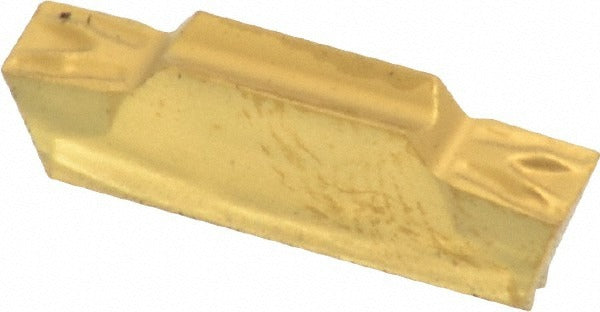

Seco 00017905 Turning Insert CP500 Solid Carbide Lcmf

Product Description

The SECO 00017905 is a solid carbide multi-directional turning insert engineered for precision grooving and turning operations across a wide range of workpiece materials. Built to the LCMF160302-A125-FT style specification, it features a micrograin carbide substrate with a PVD-applied TiAlN/TiN coating under the CP500 manufacturer grade. The insert delivers a maximum cutting width of 0.125 inches, a cutting height of 0.177 inches, and a corner radius of 0.008 inches. The FT chipbreaker geometry and neutral hand orientation make it adaptable to both left- and right-hand toolholders. Licensed machinists and CNC tool technicians are the primary installers for this insert.

This insert belongs to the MDT (Multi-Directional Turning) series and is suited for a broad range of applications including ferrous and non-ferrous metals, hardened steels, cast iron, stainless steel, and superalloys. Primary workpiece material codes supported are H, K, M, N, P, and S, covering hardened materials, cast iron, stainless steels, non-ferrous materials, steel, and heat-resistant superalloys respectively. Its double-ended design extends usable tool life per insert, making it a practical choice for production turning environments where cost-per-edge efficiency matters.

Key Features

• Micrograin solid carbide substrate for edge strength and wear resistance
• PVD TiAlN/TiN coating under CP500 grade for thermal and abrasion resistance
• Double-ended insert design maximizes cutting edges per insert
• FT chipbreaker geometry supports reliable chip control across multiple material types
• Neutral hand orientation compatible with both left- and right-hand toolholders
• 7-degree relief angle provides clearance during multi-directional cutting passes

Compatibility

Designed for use in LCMF-style MDT series toolholders accepting the LCMF160302 insert size code. Compatible workpiece material categories include H, K, M, N, P, and S classifications as defined by ISO turning material groups.

Installation Notes

This insert is installed and replaced by qualified machinists or CNC setup technicians. Before changing inserts, power down the spindle and ensure the machine is in a safe, locked-out state per applicable shop safety procedures. Use a torque wrench appropriate for the toolholder clamping screw to avoid over-tightening, and inspect the toolholder pocket for wear or debris before seating the new insert. Verify insert seating and edge orientation before resuming cutting operations.
